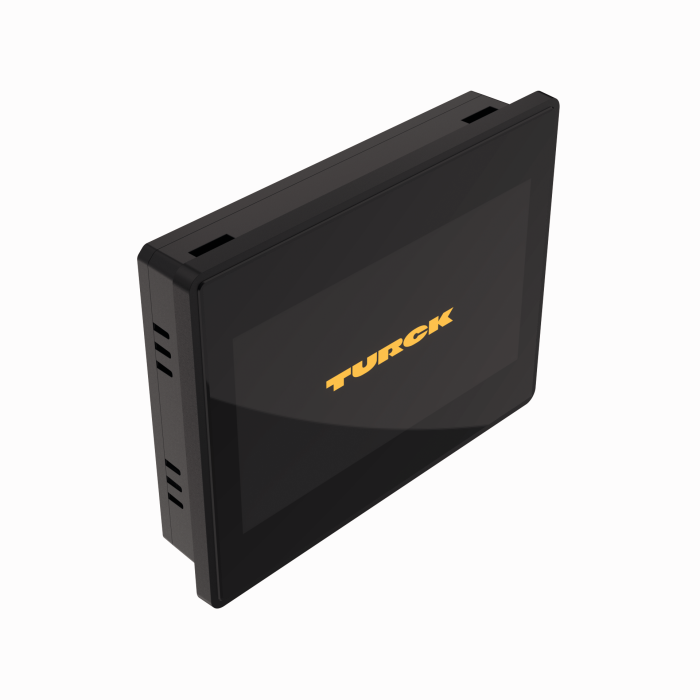

TX400 HMI/PLC Product Series - 7″ Display — Codesys V3 PLC with TARGET and WEB VISU
SKU: TX407-P3CV01
7 ″ · 64-bit RISC, Quad core 1.6 GHz · TX400 · Capacitive
$1,850.70
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
TX400 HMI/PLC Product Series — 7″ Display — Codesys V3 PLC with TARGET and WEB VISU — High-Quality Plastic Housing and Front Film with Capacitive Touch
- 2 separate RJ45 Ethernet ports
- 1 serial interface (RS232/RS422/RS485)
- 1 CAN interface
- 1 USB host port
The Turck TX400 HMI/PLC Product Series - 7″ Display — Codesys V3 PLC with TARGET and WEB VISU # TX407-P3CV01 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101683639 |
| eCl@ss-Code (V5.1.4) | 27242302 -/- Graphic panel (display and console) |
| Customs tariff number | 85371091990 |
| Country of origin | IT |
| Weight | 977 g |
| Product Family | TX400 |
| Device function | HMI/PLC |
| Diagonal screen size | 7 ″ |
| Touchscreen | Capacitive, |
| Application area | Factory Automation |
| Format | 16:9 |
| Processor | 64-bit RISC, Quad core 1.6 GHz |
| Memory | 4 GB Flash |
| RAM memory | 2048 MB |
| Programming | CODESYS V3 |
| Fieldbus master | PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT |
| Fieldbus slave | Modbus TCP, Modbus RTU, PROFINET |
| Protection class | IP66 front, IP20 rear |
