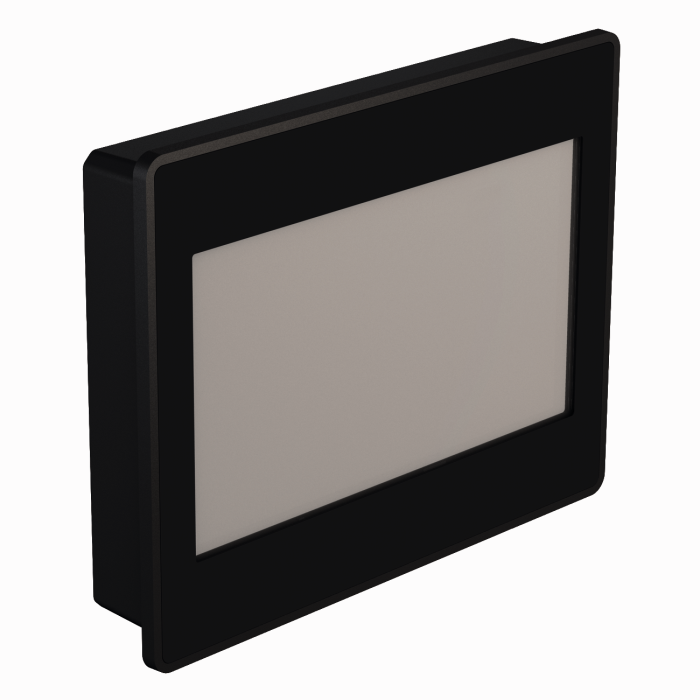

TX200 HMI/PLC Series - 7” Display - Codesys V3 PLC with TARGET and WEB VISU
SKU: TX207-P3CV01
7 ″ · ARM Cortex A9, Dual core 800 MHz · TX200 · Resistive, Plastic film front
$1,452.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
TX200 HMI/PLC Series — 7” Display - Codesys V3 PLC with TARGET and WEB VISU — High-Quality Plastic Housing with a Resistive Touch Screen
- 7" TFT wide screen color display
- LED backlight
- 800 x 480 pixel resolution
- 64 K colors
- Resistive touch screen
- 2 separate RJ45 Ethernet ports
- 4 serial interfaces (2 × RS232, 2 × RS422/RS485)
- 2 CAN interfaces
- 2 USB host ports
The Turck TX200 HMI/PLC Series - 7” Display - Codesys V3 PLC with TARGET and WEB VISU # TX207-P3CV01 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101457162 |
| eCl@ss-Code (V5.1.4) | 27242302 -/- Graphic panel (display and console) |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 875 g |
| Product Family | TX200 |
| Device function | HMI/PLC |
| Diagonal screen size | 7 ″ |
| Touchscreen | Resistive, Plastic film front |
| Application area | Factory Automation |
| Format | 16:9 |
| Processor | ARM Cortex A9, Dual core 800 MHz |
| Memory | 4 GB Flash |
| RAM memory | 1024 MB |
| Programming | CODESYS V3 |
| Fieldbus master | PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT |
| Fieldbus slave | Modbus TCP, Modbus RTU |
| Protection class | IP66 front, IP20 rear |
