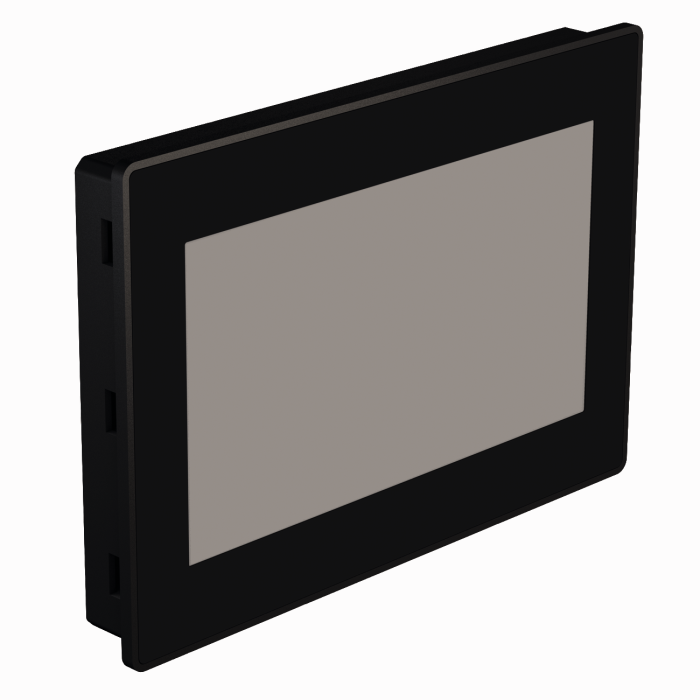

TX100 HMI Series - 10” display with TX VisuPro Runtime
SKU: TX110-00VPST
TX100 HMI Series — 10” display with TX VisuPro Runtime — High-Quality Plastic Housing with a Resistive Touch Screen
$1,537.10
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
TX100 HMI Series — 10” display with TX VisuPro Runtime — High-Quality Plastic Housing with a Resistive Touch Screen
- 10.1" TFT color display
- LED backlight
- 1024 x 600 pixel resolution
- 64 K colors
- Resistive touch screen
- 1 RJ45 Ethernet port
- 1 serial interface (RS232, RS485, RS422)
- 1 USB host port
The Turck TX100 HMI Series - 10” display with TX VisuPro Runtime # TX110-00VPST is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101461404 |
| eCl@ss-Code (V5.1.4) | 27242302 -/- Graphic panel (display and console) |
| Customs tariff number | 8537109160 |
| Country of origin | IT |
| Weight | 1517 g |
| Product Family | TX100 |
| Device function | HMI |
| Diagonal screen size | 10 ″ |
| Touchscreen | Resistive, Plastic film front |
| Application area | Factory Automation |
| Format | 16:9 |
| Processor | ARM Cortex A8, 1 GHz |
| Memory | 4 GB Flash |
| RAM memory | 512 MB |
| Protection class | IP66 front, IP20 rear |
