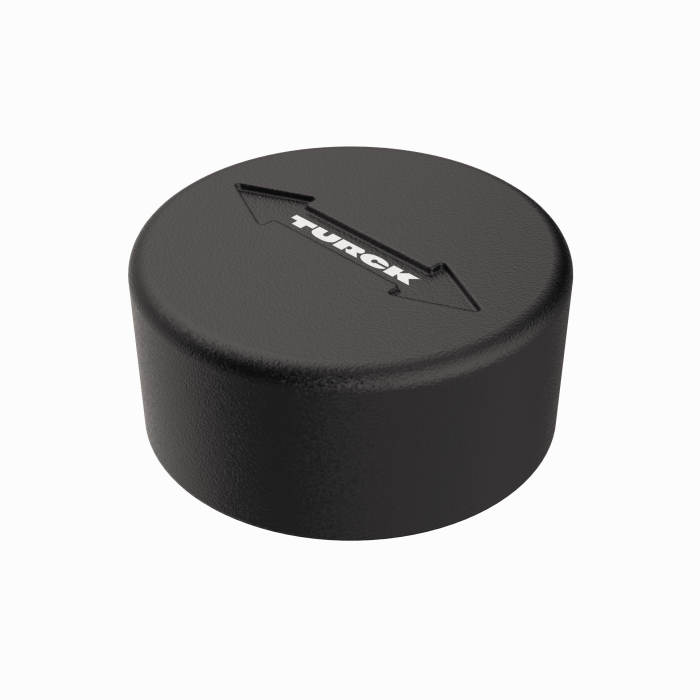

HF Tag - In Metal

HF Tag — In Metal

• Tag for direct mounting on metal
• The mounting position (arrow) as well as the alignment of the tag towards the read/write head must be observed under all circumstances in order to achieve a maximum read/write distance
• When installed recessed in metal by 1 mm, the write/read distance reduces to 30%
• Extended storage temperature range: The tags must undergo adequate stress tests within the proposed temperature processes before deployment.
• The following stress test was performed on this tag:  Cyclic temperature stress: 5 min. at 20 °C – 5 min. at 160 °C.Number of tested cycles: 100TThis successfully performed test does not imply suitability for a specific high-temperature application, but merely serves as proof of the basic usability.
• EEPROM, memory 146 byte
• For direct mounting on metal

The Turck HF Tag - In Metal # TW-R10-M-B146 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
