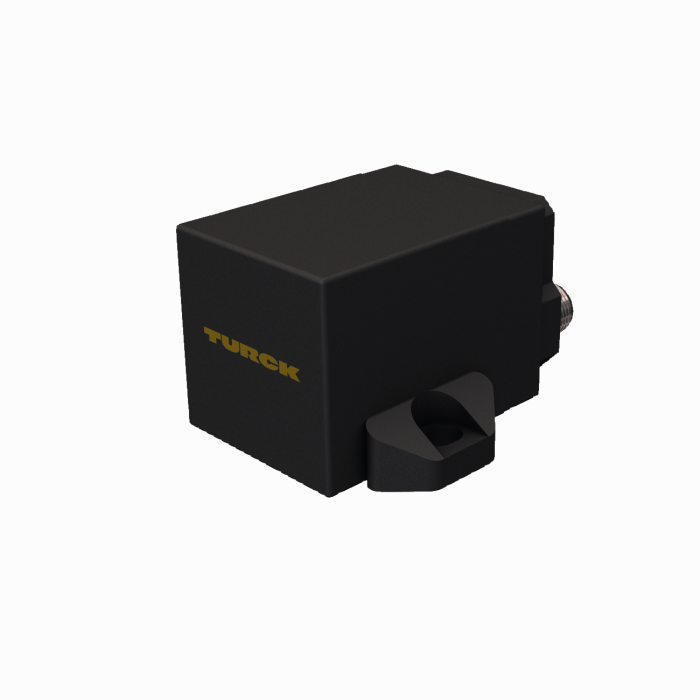

HF Read/Write Head
SKU: TNSLR-Q42TWD-H1147
67.7 x 42.5 x 42.5 mm, Q42 · Connection to RFID interface · Rectangular · 215 mm
$1,167.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
HF Read/Write Head
- Rectangular, height 42.5 mm
- Active face on top
- Plastic, PA12-GF30
- Powered and operated only via connection to BL ident interface module
- Electrical connection only via BL ident extension cable
The Turck HF Read/Write Head # TNSLR-Q42TWD-H1147 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101261042 |
| eCl@ss-Code (V5.1.4) | 27280401 -/- Identification RFID |
| Customs tariff number | 8544429090 |
| Country of origin | CN |
| Weight | 146 g |
| Technology | HF RFID |
| Radio communication and protocol standards | ISO 15693, NFC Typ 5 |
| Design | Rectangular |
| Construction size | 67.7 x 42.5 x 42.5 mm, Q42 |
| Read/Write distance max. | 215 mm |
| Mounting | Non-flush |
| Fieldbus Protocol | Connection to RFID interface |
| Housing material | Plastic, PA12-GF30, Black |
| Ambient temperature | -25…+70 °C |
| Protection class | IP68/IP69K |
