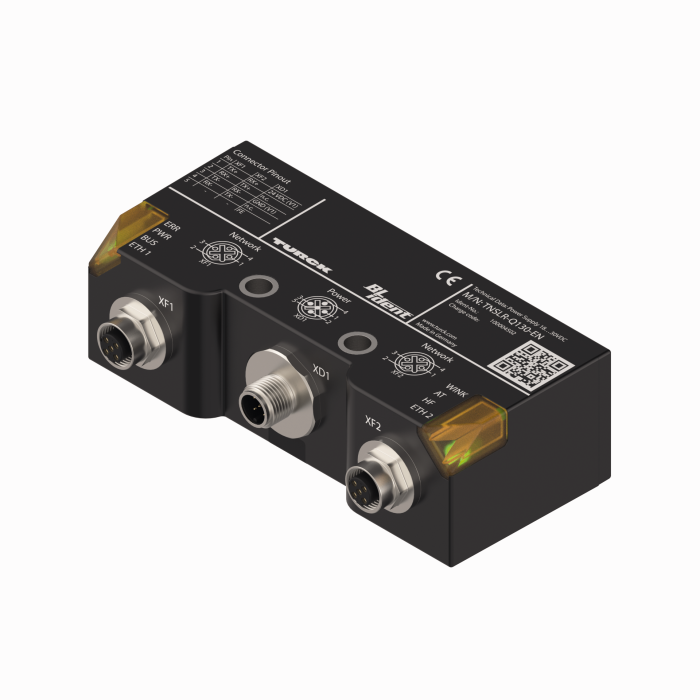

HF Read/Write Head — Integrated-Interface Multiprotocol Ethernet

• Commissioning support through graphical display of the RSSI value and the detuning caused by metal in TAS (Turck Automation Suite, available free of charge at www.turck.com)
• PROFINET device, EtherNet/IP device or Modbus TCP server
• PROFINET S2 system redundancy
• Integrated Ethernet switch
• Supports 10 Mbps/100 Mbps
• Glass-fiber-reinforced housing
• Shock and vibration tested
• Fully encapsulated module electronics
• Protection class IP69K front, IP67 rear
• Integration in PLC systems without the use of a special function module
• Up to 128 bytes of user data per read/write cycle and use of fragments with 16 kilobytes of FIFO memory each
• Data interface for convenient use of the RFID functions
• Integrated web server with reader parameterization
• LEDs and diagnostics

The Turck HF Read/Write Head - Integrated-Interface Multiprotocol Ethernet # TNSLR-Q130-EN is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
