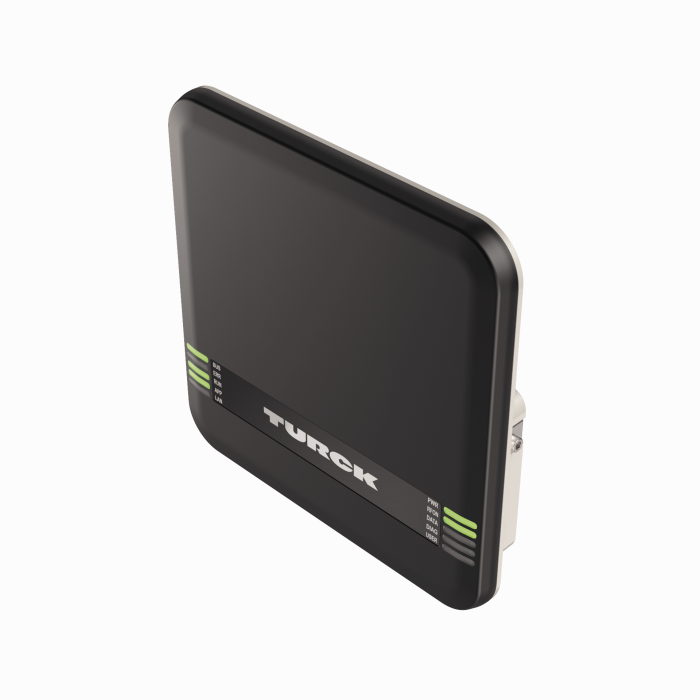

UHF Reader
SKU: TN-UHF-Q300-NA-CDS
300 x 300 x 61.7 mm, Q300 · PROFINET, Modbus TCP, EtherNet/IP, TCP/IP · Rectangular
$3,355.70
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
UHF Reader
- Integrated web server with reader parameterization
- Web-based UHF RFID test tool for easy air interface evaluation
- UV resistance
- 4 connections for passive UHF RFID antennas
- 4 configurable digital channels as PNP inputs and/or outputs with 0.5 A per channel
- Programmable according to IEC 61131-3 with Codesys V3
- Codesys V3 PLC Runtime
- Codesys OPC-UA Server
- PROFINET device, EtherNet/IP device or Modbus TCP master/slave
- "U" data interface for convenient use of the RFID functionality
- Close-to-control integration in PLC systems without the use of a special function block
- Diagnostic LEDs on front face
- Device only suitable for operation in North America (NA) at 902…928 MHz (USA, Canada, Mexico)
The Turck UHF Reader # TN-UHF-Q300-NA-CDS is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101445121 |
| eCl@ss-Code (V5.1.4) | 27280401 -/- Identification RFID |
| Customs tariff number | 8538908180 |
| Country of origin | DE |
| Weight | 3564 g |
| Technology | UHF RFID |
| Region (UHF) | USA, Canada, Mexico (902…928 MHz) |
| Radio communication and protocol standards | ISO 18000-63, EPCglobal Gen 2 |
| Design | Rectangular |
| Construction size | 300 x 300 x 61.7 mm, Q300 |
| Mounting | Non-flush |
| Fieldbus Protocol | PROFINET, Modbus TCP, EtherNet/IP, TCP/IP |
| Housing material | Aluminium, AL, Silver |
| Ambient temperature | -20…+50 °C |
| Protection class | IP67 |
