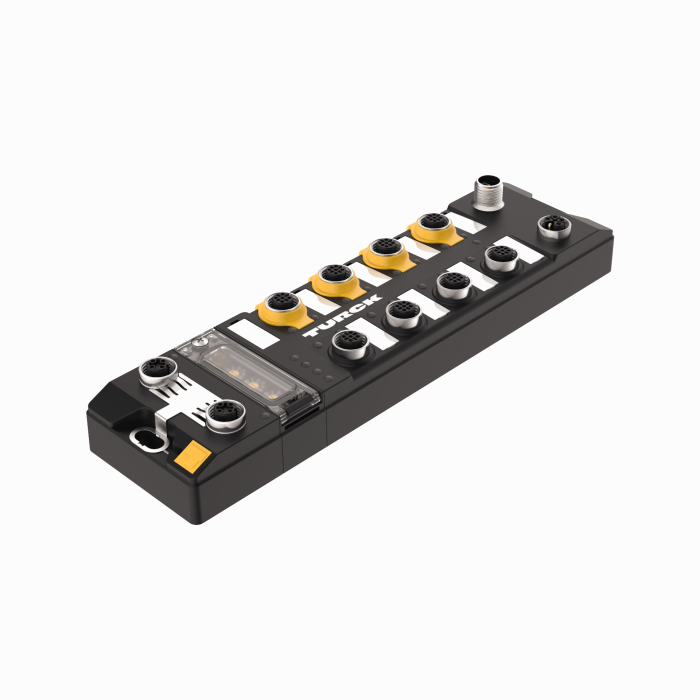

Compact and Secure Ethernet I/O Module - Safe Digital Inputs and Outputs, Standard Universal Digital Channels, IO-Link Master Ports
SKU: TBPN-LL-FDIO1-2IOL
I/O Module, Compact station · Fail-safe inputs, Fail-safe inputs and outputs, Digital input/output, IO-Link · M12 · ATEX Zone 2/22, cULus, IECEx, CCC
List price. Volume pricing available.
Compact and Secure Ethernet I/O Module — Safe Digital Inputs and Outputs, Standard Universal Digital Channels, IO-Link Master Ports — M12 L-Coded Voltage Connector
- PROFINET device
- Integrated Ethernet switch
- 100 Mbps supported
- 2 × M12, 4-pin, D-coded, Ethernet fieldbus connection
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- M12, 5-pin, L-coded male connector for power supply
- ATEX zone 2/22
- CCC-Ex
- Two secure digital SIL3-inputs
- Two secure digital SIL3 channels as FDI or FDO (PP, PM)
- Four secure digital SIL3 FDI channels
- 2 IO-Link Master V1.1 slots
The Turck Compact and Secure Ethernet I/O Module - Safe Digital Inputs and Outputs, Standard Universal Digital Channels, IO-Link Master Ports # TBPN-LL-FDIO1-2IOL is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101556544 |
| eCl@ss-Code (V5.1.4) | 27250302 -/- Digital I/O module (periphery) |
| Customs tariff number | 9026204000 |
| Country of origin | DE |
| Weight | 640 g |
| Fieldbus Protocol | PROFIsafe via PROFINET |
| Signal type | Fail-safe inputs, Fail-safe inputs and outputs, Digital input/output, IO-Link |
| Connection technology signal | M12 |
| Device type | I/O Module, Compact station |
| Fieldbus transmission rate | 100 Mbps |
| Fieldbus connection technology | 2 x M12, 4-pin, D-coded |
| Ambient temperature | -40…+70 °C |
| Protection class | IP65/IP67/IP69K |
| Approvals | ATEX Zone 2/22, cULus, IECEx, CCC |
