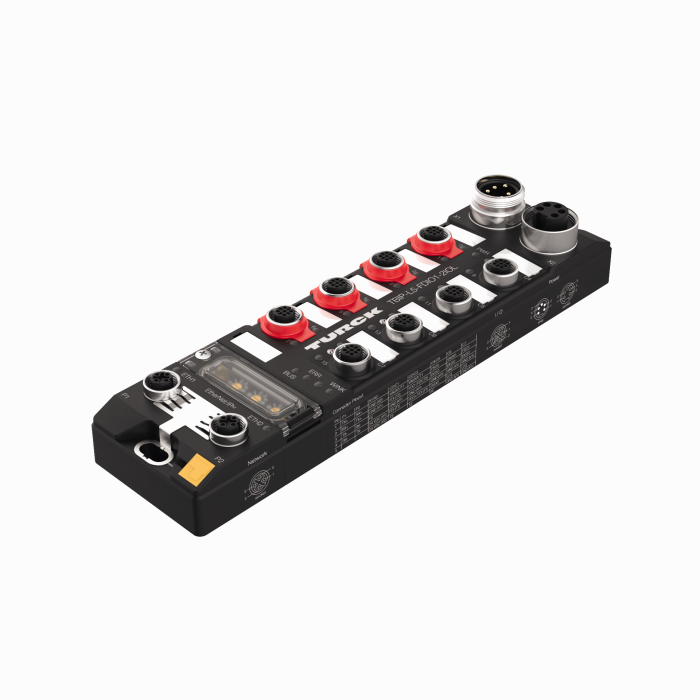

Block Module for EtherNet/IP and CIP Safety - Safe Digital Inputs and Outputs, Standard Universal Digital Channels, IO-Link Master Ports
SKU: TBIP-L5-FDIO1-2IOL
I/O Module, Compact station · Fail-safe inputs, Fail-safe inputs and outputs, Digital input/output, IO-Link · M12 · ATEX Zone 2/22, cULus, IECEx, CCC
List price. Volume pricing available.
Block Module for EtherNet/IP and CIP Safety — Safe Digital Inputs and Outputs, Standard Universal Digital Channels, IO-Link Master Ports
- EtherNet/IP device
- Integrated Ethernet switch
- 10 Mbps/100 Mbps supported
- 2 × M12, 4-pin, D-coded, Ethernet fieldbus connection
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- 5-pin 7/8″ male connector for power supply
- ATEX zone 2/22
- CCC-Ex
- Two secure digital SIL3-inputs
- Two secure digital SIL3 channels as FDI or FDO (PP, PM)
- Four secure digital SIL3 FDI channels
- 2 IO-Link Master V1.1 slots
The Turck Block Module for EtherNet/IP and CIP Safety - Safe Digital Inputs and Outputs, Standard Universal Digital Channels, IO-Link Master Ports # TBIP-L5-FDIO1-2IOL is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101417968 |
| eCl@ss-Code (V5.1.4) | 27250302 -/- Digital I/O module (periphery) |
| Customs tariff number | 8544429090 |
| Country of origin | CN |
| Weight | 654 g |
| Fieldbus Protocol | CIP safety via EtherNet/IP |
| Signal type | Fail-safe inputs, Fail-safe inputs and outputs, Digital input/output, IO-Link |
| Connection technology signal | M12 |
| Device type | I/O Module, Compact station |
| Fieldbus transmission rate | 10/100 Mbps |
| Fieldbus connection technology | 2 x M12, 4-pin, D-coded |
| Ambient temperature | -40…+70 °C |
| Protection class | IP65/IP67/IP69K |
| Approvals | ATEX Zone 2/22, cULus, IECEx, CCC |
