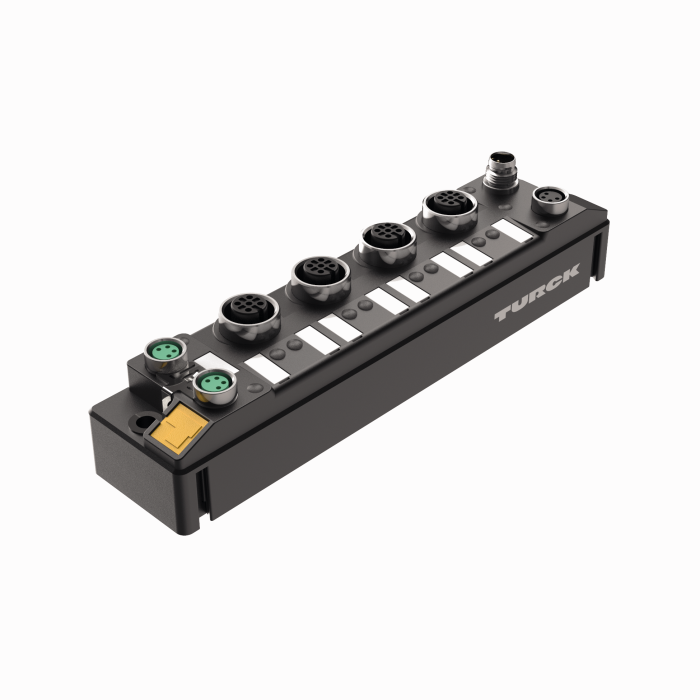

Compact Multiprotocol I/O Module for Ethernet - 4 Analog Inputs, Configurable as Voltage, Current, RTD or Thermocouple
SKU: TBEN-S2-4AI
I/O Module, Compact station, Field Logic Controller (ARGEE) · Analog input, Temperature · M12 · ATEX Zone 2/22, cULus, IECEx, CCC
$719.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Compact Multiprotocol I/O Module for Ethernet — 4 Analog Inputs, Configurable as Voltage, Current, RTD or Thermocouple
- PROFINET device, EtherNet/IP device, Modbus TCP server, CC-Link IE field basic
- Integrated Ethernet switch
- Supports 10 Mbps/100 Mbps
- 2 × M8, 4-pin, Ethernet fieldbus connection
- PROFINET S2 system redundancy
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- 4-pin M8 male connector for power supply
- ATEX zone 2/22
- CCC-Ex
- Each channel is freely selectable for voltage, current, RTD, resistance or thermocouple
- Measuring ranges:
- Voltage: ±500 mV, ±100 mV, ±50 mV, ±1 V, 0/1–5 V, ±10 V, 0/2–10 V
- Current: 0/4–20 mA, ±20 mA
- RTD: PT100, NI100, PT200, PT500, PT1000, NI1000
- Resistance: 0–100 Ω/400 Ω/2 kΩ/4 kΩ
- Thermocouples: Type B, C, E, G, J, K, N, R, S, T
- Inputs differential or common reference
- Programmable ARGEE
The Turck Compact Multiprotocol I/O Module for Ethernet - 4 Analog Inputs, Configurable as Voltage, Current, RTD or Thermocouple # TBEN-S2-4AI is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101309249 |
| eCl@ss-Code (V5.1.4) | 27250302 -/- Digital I/O module (periphery) |
| Customs tariff number | 8544429090 |
| Country of origin | CN |
| Weight | 225 g |
| Fieldbus Protocol | Modbus TCP, EtherNet/IP, PROFINET, CC-Link IE Field Basic |
| Signal type | Analog input, Temperature |
| Connection technology signal | M12 |
| Device type | I/O Module, Compact station, Field Logic Controller (ARGEE) |
| Fieldbus transmission rate | 10/100 Mbps |
| Fieldbus connection technology | 2 × M8, 4-pin |
| Ambient temperature | -40…+70 °C |
| Protection class | IP65/IP67/IP69K |
| Approvals | ATEX Zone 2/22, cULus, IECEx, CCC |
