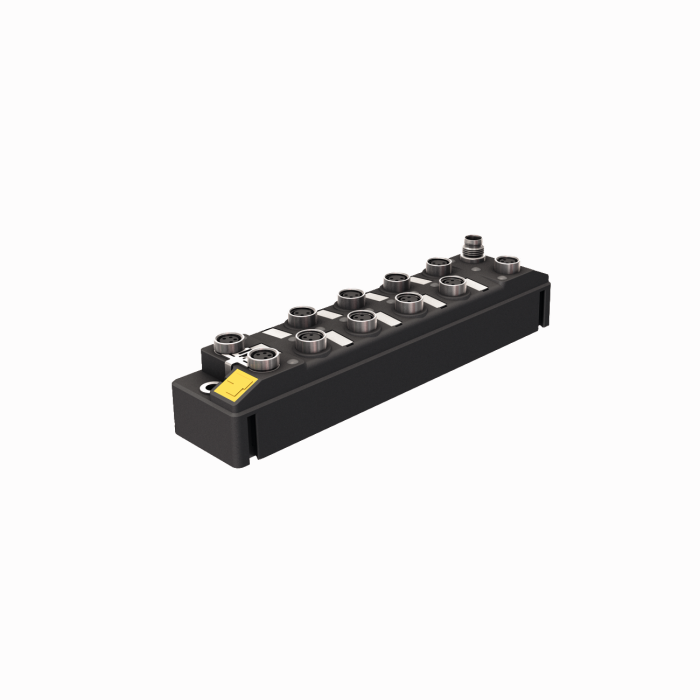

Compact Multiprotocol I/O Module for Ethernet - 8 Digital PNP Inputs, Input Diagnostics per Channel
SKU: TBEN-S1-8DIP-D
I/O Module, Compact station, Field Logic Controller (ARGEE) · Digital input · M8 · ATEX Zone 2/22, cULus, IECEx, CCC
$414.10
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Compact Multiprotocol I/O Module for Ethernet — 8 Digital PNP Inputs, Input Diagnostics per Channel
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- 4-pin M8 male connector for power supply
- ATEX zone 2/22
- CCC-Ex
- Input diagnostics per channel
- Programmable ARGEE
The Turck Compact Multiprotocol I/O Module for Ethernet - 8 Digital PNP Inputs, Input Diagnostics per Channel # TBEN-S1-8DIP-D is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101313963 |
| eCl@ss-Code (V5.1.4) | 27250302 -/- Digital I/O module (periphery) |
| Customs tariff number | 8544429090 |
| Country of origin | CN |
| Weight | 210 g |
| Signal type | Digital input |
| Connection technology signal | M8 |
| Device type | I/O Module, Compact station, Field Logic Controller (ARGEE) |
| Fieldbus transmission rate | 10/100 Mbps |
| Fieldbus connection technology | 2 × M8, 4-pin |
| Ambient temperature | -40…+70 °C |
| Protection class | IP65/IP67/IP69K |
| Approvals | ATEX Zone 2/22, cULus, IECEx, CCC |
