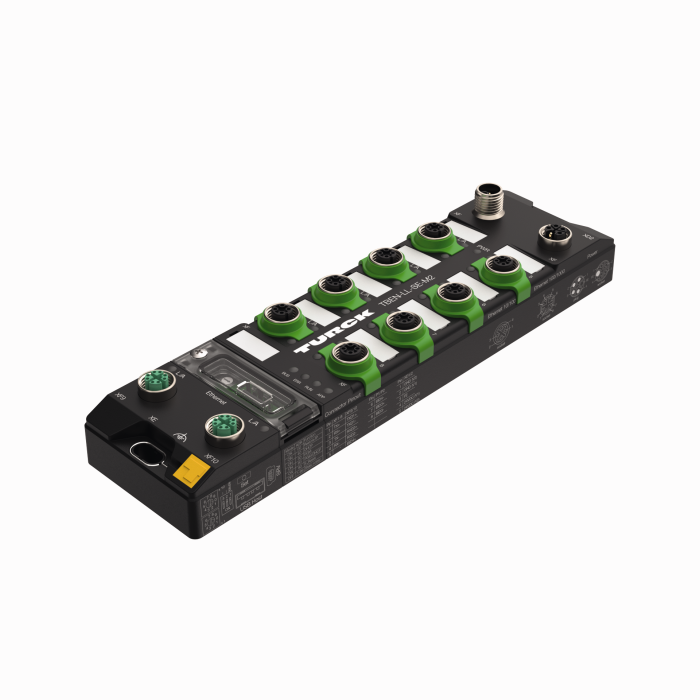

Managed Ethernet Switch - 8 × 100-Mbit Ports, 2 × 1-Gbit Ports

Managed Ethernet Switch — 8 × 100-Mbit Ports, 2 × 1-Gbit Ports

• PROFINET device, EtherNet/IP device or Modbus TCP server
• 2 × M12, 8-pin, X-coded, 1 Gbps high-speed backbone
• 8 × M12, 4-pin, D-coded, 100 Mbps
• Glass fiber reinforced housing
• Shock and vibration tested
• Fully potted module electronics
• Protection classes IP65, IP67, IP69K
• M12, L-coded male connector for power supply
• Galvanically isolated voltage groups
• ATEX zone 2/22
• CCC-Ex
• Web-based management
• Firewall
• Configurable LAN/WAN zones
• NAT routing
• VLAN according to IEEE 802.1q
• Prioritization according to IEEE 802.1p
• DHCP server/client
• Port-based IP address assignment
• IGMP (snooping/querier)
• Media redundancy RSTP
• HTTP, HTTPS, LLDP, NTP, SNMP V1–V3
• Port mirroring

The Turck Managed Ethernet Switch - 8 × 100-Mbit Ports, 2 × 1-Gbit Ports # TBEN-LL-SE-M2 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
