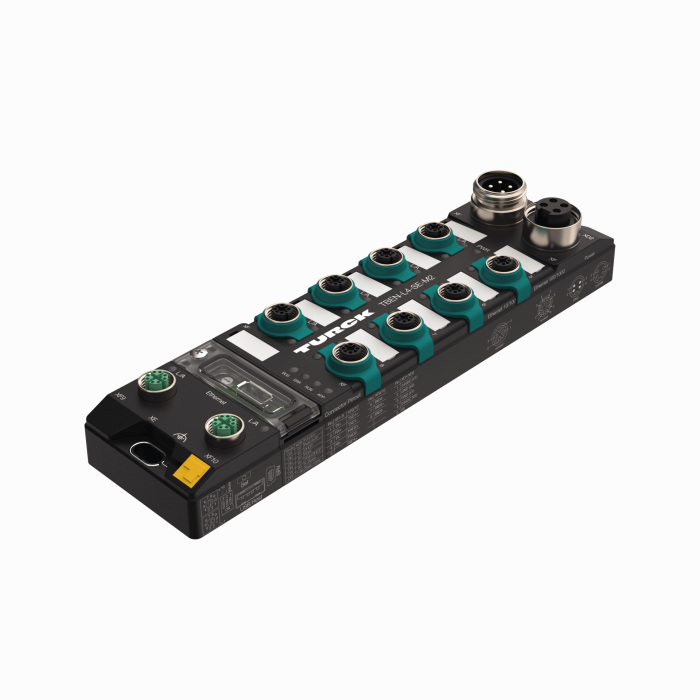

Managed Ethernet Switch - 8 × 100-Mbit Ports, 2 × 1-Gbit Ports
SKU: TBEN-L4-SE-M2
10 ports · 2 × M12, 8-pin, X-coded, 8 × M12, 4-pin, D-coded · 10/100/1000 Mbps
$1,500.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Managed Ethernet Switch — 8 × 100-Mbit Ports, 2 × 1-Gbit Ports
- PROFINET device, EtherNet/IP device or Modbus TCP server
- 2 × M12, 8-pin, X-coded, 1 Gbps high-speed backbone
- 8 × M12, 4-pin, D-coded, 100 Mbps
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- 7/8" males, 4-pin, for power supply
- Separated power groups for safety shutdown
- ATEX zone 2/22
- CCC-Ex
- Web-based management
- Firewall
- Configurable LAN/WAN zones
- NAT routing
- VLAN according to IEEE 802.1q
- Prioritization according to IEEE 802.1p
- DHCP server/client
- Port-based IP address assignment
- IGMP (snooping/querier)
- Media redundancy RSTP
- HTTP, HTTPS, LLDP, NTP, SNMP V1–V3
- Port mirroring
The Turck Managed Ethernet Switch - 8 × 100-Mbit Ports, 2 × 1-Gbit Ports # TBEN-L4-SE-M2 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101499384 |
| eCl@ss-Code (V5.1.4) | 27250302 -/- Digital I/O module (periphery) |
| Customs tariff number | 9026204000 |
| Country of origin | DE |
| Weight | 605 g |
| Fieldbus Protocol | Modbus TCP, EtherNet/IP, PROFINET |
| Device type | Ethernet switch |
| Transmission rate Ethernet | 10/100/1000 Mbps |
| Number of Ethernet ports | 10 ports |
| Connection technology Ethernet | 2 × M12, 8-pin, X-coded, 8 × M12, 4-pin, D-coded |
| Ambient temperature | -40…+70 °C |
| Protection class | IP65/IP67/IP69K |
| Approvals | ATEX Zone 2/22, cULus, IECEx, CCC |
