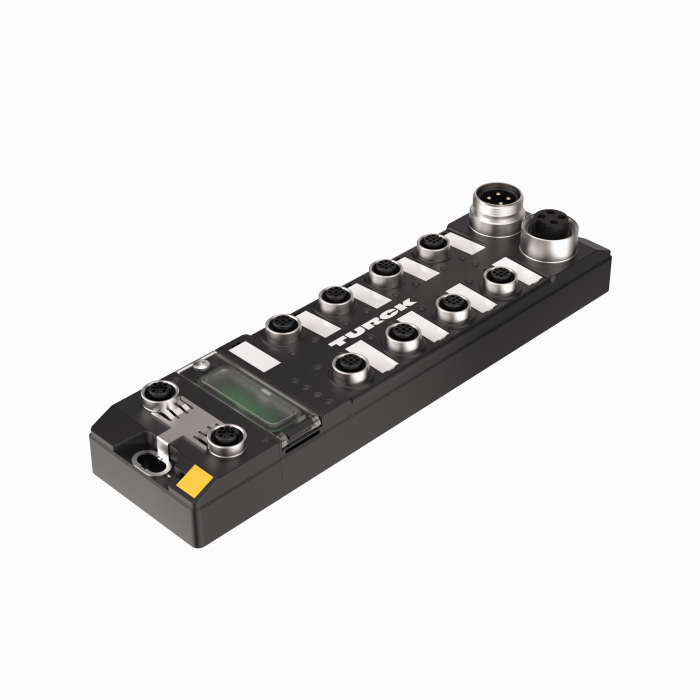

Compact Multiprotocol RFID Module for Ethernet - interface for 4 BL ident read-write heads (HF/UHF)

Compact Multiprotocol RFID Module for Ethernet — interface for 4 BL ident read-write heads (HF/UHF)

• Codesys V3 PLC runtime
• Codesys OPC UA server/client
• PROFINET device, EtherNet/IP device or Modbus TCP client/server
• 4 channels with M12 connection for RFID
• 8 universal digital channels, configurable as PNP inputs or outputs, 2 A
• Switched or dual MAC mode
• Integrated Ethernet switch
• Supports 10 Mbps/100 Mbps
• Glass fiber reinforced housing
• Shock and vibration tested
• Fully potted module electronics
• Protection classes IP65, IP67, IP69K
• ATEX zone 2/22
• CCC-Ex
• Integration in PLC systems without the use of a special function module
• Up to 128 bytes of user data per read/write cycle per channel as well as use of fragments for larger data volumes
• Data interface for convenient use of the RFID functions
• Continuous HF bus mode with up to 32 HF read/write heads per channel
• 4 channels with M12 connection for RFID
• 8 universal digital channels, configurable as PNP inputs or outputs, 2 A

The Turck Compact Multiprotocol RFID Module for Ethernet - interface for 4 BL ident read-write heads (HF/UHF) # TBEN-L4-4RFID-8DXP-CDS is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
