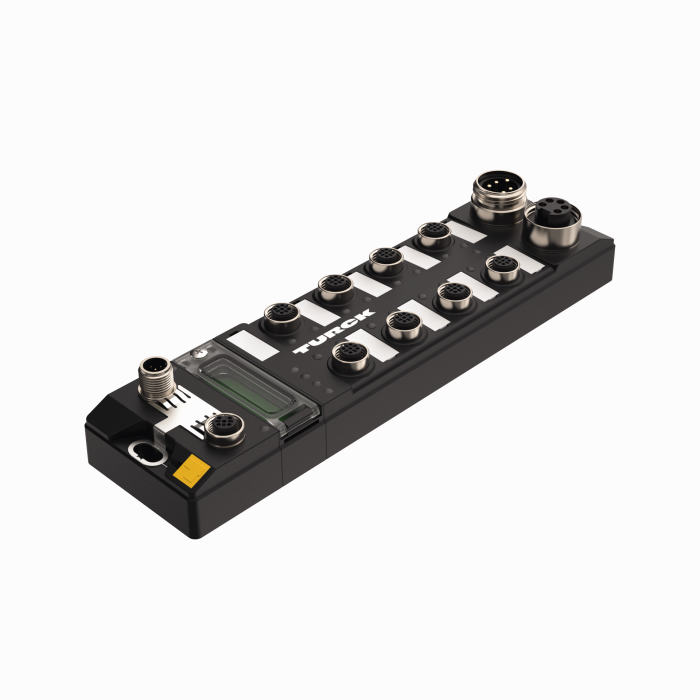

Fieldbus I/O module PROFIBUS-DP - 8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
SKU: TBDP-L2-8DIP-8DOP
I/O Module, Compact station · Digital input, Digital input/output, Digital output · M12 · ATEX Zone 2/22, cULus, IECEx, CCC
$576.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Fieldbus I/O module PROFIBUS-DP — 8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
- 2 x M12, 5-pin, B-coded, PROFIBUS-DP-Fieldbus connection
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- ATEX zone 2/22
- CCC-Ex
- Input diagnostics per port
- Max. 2 A per output
- Output diagnostics per channel
The Turck Fieldbus I/O module PROFIBUS-DP - 8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A # TBDP-L2-8DIP-8DOP is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101285796 |
| eCl@ss-Code (V5.1.4) | 27250302 -/- Digital I/O module (periphery) |
| Customs tariff number | 8536504000 |
| Country of origin | CN |
| Weight | 650 g |
| Fieldbus Protocol | PROFIBUS-DP |
| Signal type | Digital input, Digital input/output, Digital output |
| Connection technology signal | M12 |
| Device type | I/O Module, Compact station |
| Fieldbus transmission rate | 9.6 kbps …12 Mbps |
| Fieldbus connection technology | 2 × M12, 5-pin, reverse-coded |
| Ambient temperature | -40…+70 °C |
| Protection class | IP65/IP67/IP69K |
| Approvals | ATEX Zone 2/22, cULus, IECEx, CCC |
