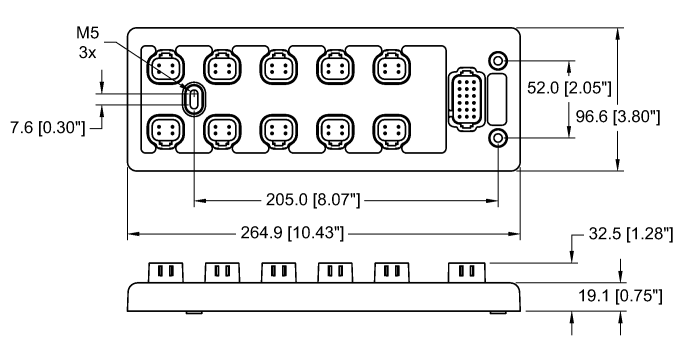

- Passive Module
SKU: TBCJ-D1-10SPLIT-P
Passive Module
$228.60
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Passive Module
- This block has 16 I/Os and provides both the sensor supply as well as a ground in each port. There are mirrored ports (7 + 9 and 8 + 10), all pins are internally connected so that two devices can be operated with the same wire. This module can deliver 13 combined amps.
- Number of I/Os: 16, 2 mirrored ports (ports 7 + 9 and ports 8 + 10)
- Total output current: 13A
- Switching current: 13A
The Turck - Passive Module # TBCJ-D1-10SPLIT-P is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 8536908530 |
| Weight | 717.19 g |
| Fieldbus Protocol | CAN |
| Connection technology signal | DT06-4S |
| Ambient temperature | -40…+85 °C |
| Protection class | IP67 |
