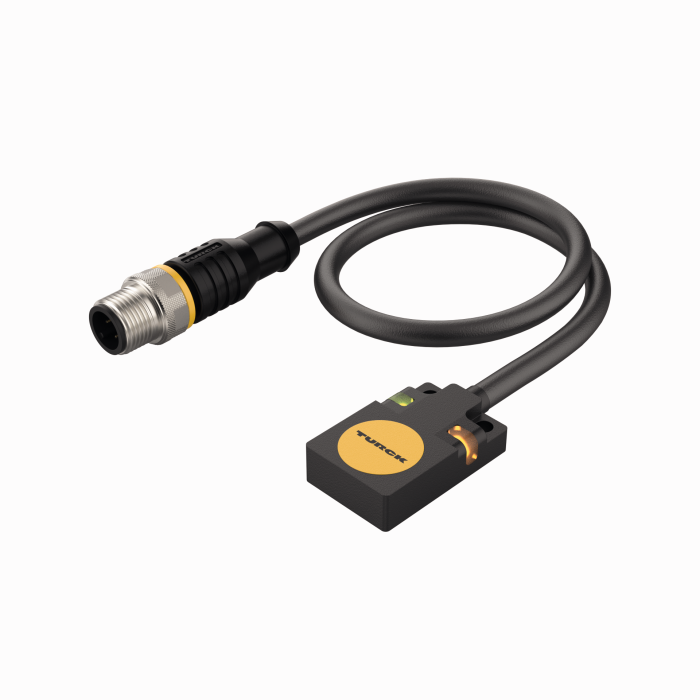

HF Read/Write Head - For Bus Line Topology with TBEN-*

HF Read/Write Head — For Bus Line Topology with TBEN-*

• Rectangular, height 8 mm
• Active face on top
• Metal, GD-Zn, nickel-plated brass
• Device without end termination
• Device may only be operated in line topology TBEN-S*-2RFID-* or TBEN-L*-4RFID-*
• Max. 32 nodes per line or connection permitted
• Use a corresponding terminating resistor (see accessories)
• Observe the performance of the power supply, especially when turned on, and the maximum current carrying capacity of the cables
• Observe the voltage drop on the line
• The maximum possible length of the spur line is 2 m
• The maximum possible length of the bus is 50 m
• By default, a command can only be processed by one read/write head, making HF bus mode suitable for static applications and slow dynamic applications
• In continuous HF bus mode, a command is executed simultaneously on all read/write heads in a bus topology. The recorded data is stored in the ring buffer of the module
• The read/write head is automatically assigned an address
• For different application requirements, the address and can be parameterized
• Powered and operated only via connection to BL ident interface module
• Electrical connection only via BL ident extension cable

The Turck HF Read/Write Head - For Bus Line Topology with TBEN-* # TB-Q08-0.15-RS4.47T/C53 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
