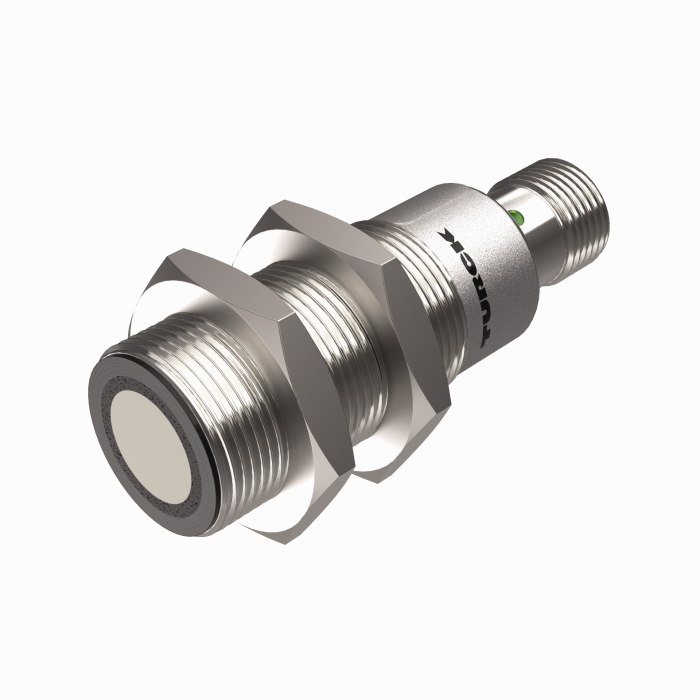

Ultrasonic Sensor - Diffuse Mode Sensor
SKU: RU80D-M18M-UPN8X2-H1141
80…800 mm · M18 x 1 · PNP/NPN · Connector, M12 × 1
$356.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Ultrasonic Sensor — Diffuse Mode Sensor
- Smooth sonic transducer face
- M18 cylindrical design, potted
- Connection via M12 × 1 male connector
- Measuring range adjustable via teach-in
- Temperature compensation
- Blind zone: 8 cm
- Range: 80 cm
- Resolution: 1 mm
- Adjustable switching hysteresis
- Narrow sonic cone
- Switching output, push-pull (PNP/NPN)
- NO/NC programmable
- IO-Link
The Turck Ultrasonic Sensor - Diffuse Mode Sensor # RU80D-M18M-UPN8X2-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101596410 |
| eCl@ss-Code (V5.1.4) | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 7307290090 |
| Country of origin | DE |
| Weight | 55 g |
| Function | Proximity |
| Operating mode | Time of Flight |
| Design | Threaded barrel |
| Construction size | M18 x 1 |
| Radiation direction | straight |
| Range | 80…800 mm |
| Resolution | 1 mm |
| Operating voltage | 18…30 VDC |
| Switching element function | NO/NC |
| Output function | PNP/NPN |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, CuZn, Nickel Plated |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Approvals | CE, cULus |
| Special features | Teach input |
