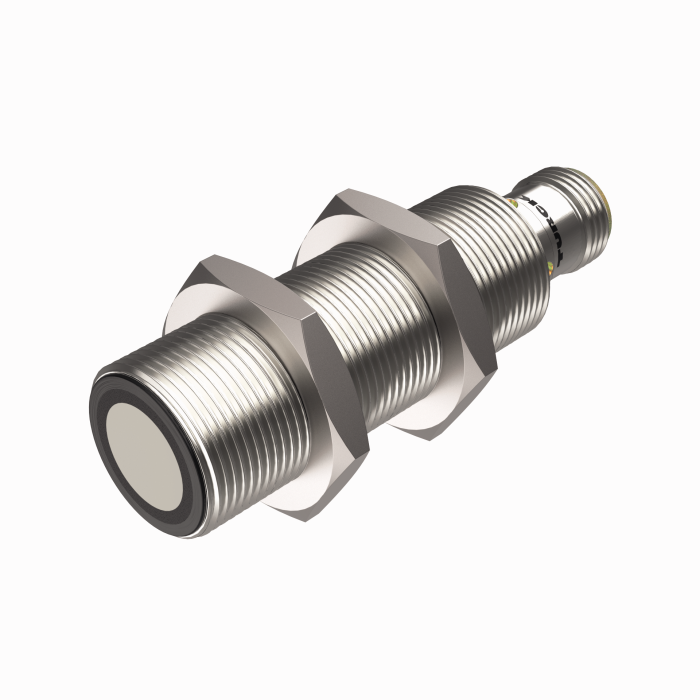

Ultrasonic Sensor - Diffuse Mode Sensor
SKU: RU40U-M18M-LFX-H1151
25…400 mm · M18 x 1 · Frequency · Connector, M12 × 1
$241.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Ultrasonic Sensor — Diffuse Mode Sensor
- Smooth sonic transducer face
- Cylindrical housing M18, potted
- Connection via M12 x 1 male
- Temperature compensation
- Blind zone: 2.5 cm
- Range: 40 cm
- Resolution: 0.5 mm
- Aperture angle of sonic cone: ±15 °
- Frequency output 240…1600 Hz (60…400 Hz)
- Frequency range selectable via FS control line (see functional principle)
The Turck Ultrasonic Sensor - Diffuse Mode Sensor # RU40U-M18M-LFX-H1151 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101346107 |
| eCl@ss-Code (V5.1.4) | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 8543709860 |
| Country of origin | DE |
| Weight | 70 g |
| Function | Proximity |
| Operating mode | Time of Flight |
| Design | Threaded barrel |
| Construction size | M18 x 1 |
| Radiation direction | straight |
| Range | 25…400 mm |
| Resolution | 0.5 mm |
| Operating voltage | 15…30 VDC |
| Output function | Frequency |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, CuZn, Nickel Plated |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Approvals | CE, cULus |
| Special features | Compact |
