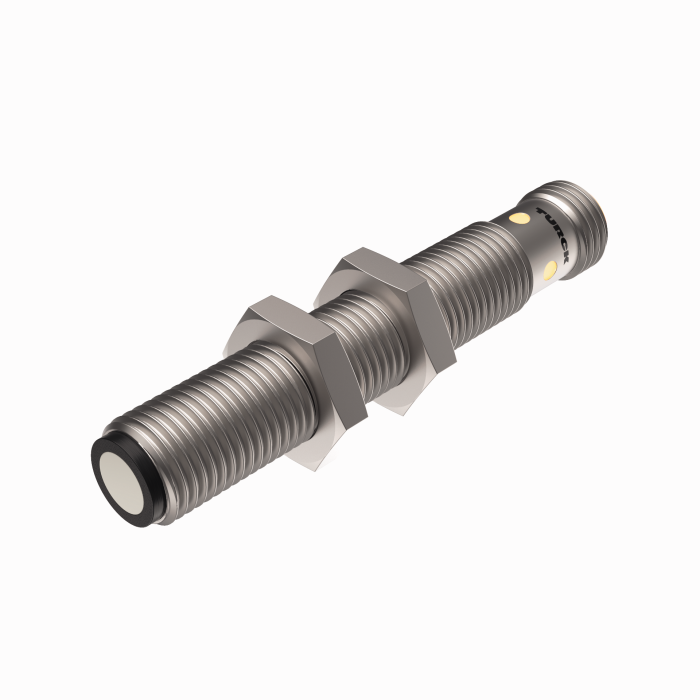

Ultrasonic Sensor - Diffuse Mode Sensor
SKU: RU20U-M12-AP6X2-H1141
25…200 mm · M12 x 1 · PNP · Connector, M12 × 1
$359.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Ultrasonic Sensor — Diffuse Mode Sensor
- Smooth sonic transducer face
- Cylindrical housing M12, potted
- Connection via M12 × 1 male connector
- Teach range adjustable via connection cable
- Blind zone: 2.5 cm
- Range: 20 cm
- Resolution: 0.5 mm
- Aperture angle of sonic cone: ±9 °
- Switching output, PNP, programmable via IO-Link
- NO/NC programmable
- IO-Link
The Turck Ultrasonic Sensor - Diffuse Mode Sensor # RU20U-M12-AP6X2-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101436433 |
| eCl@ss-Code (V5.1.4) | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 8517620010 |
| Country of origin | DE |
| Weight | 45 g |
| Function | Proximity |
| Operating mode | Time of Flight |
| Design | Threaded barrel |
| Construction size | M12 x 1 |
| Radiation direction | straight |
| Range | 25…200 mm |
| Resolution | 0.5 mm |
| Operating voltage | 10…30 VDC |
| Switching element function | NO/NC |
| Output function | PNP |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, CuZn, Chrome-plated |
| Ambient temperature | -10…+60 °C |
| Protection class | IP67 |
| Approvals | CE, cULus |
