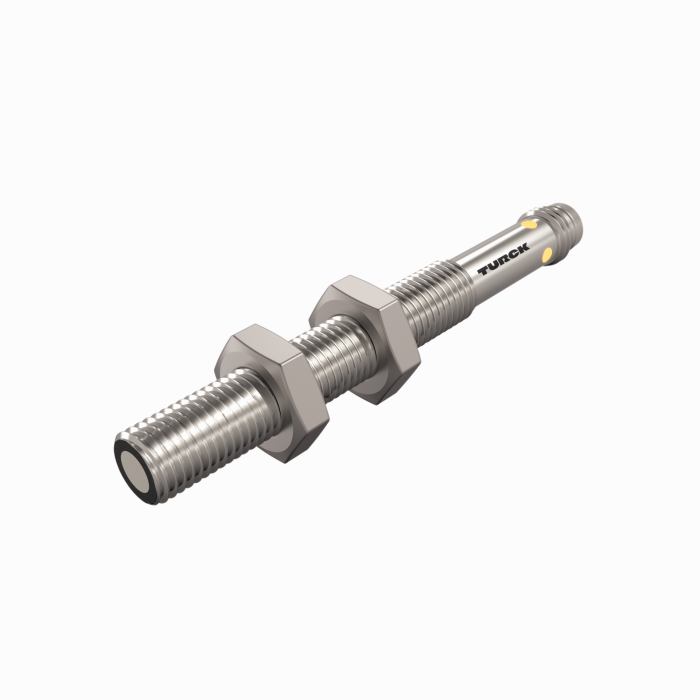

Ultrasonic Sensor - Diffuse Mode Sensor
SKU: RU10U-M08-UN8X-V1141
20…100 mm · M8 x 1 · NPN · Connector, M8 × 1
$231.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Ultrasonic Sensor — Diffuse Mode Sensor
- Smooth sonic transducer face
- Cylindrical housing M08, potted
- Connection via M8 × 1 male connector
- Teach range adjustable via connection cable
- Blind zone: 2 cm
- Range: 10 cm
- Resolution: 0.2 mm
- Aperture angle of sonic cone: ±9 °
- 1 × switching output, NPN
- Teachable settings
- NO/NC programmable
- IO-Link
The Turck Ultrasonic Sensor - Diffuse Mode Sensor # RU10U-M08-UN8X-V1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101476125 |
| eCl@ss-Code (V5.1.4) | 27272803 -/- Ultrasonic proximity switch |
| Customs tariff number | 8538908180 |
| Country of origin | DE |
| Weight | 24 g |
| Function | Proximity |
| Operating mode | Time of Flight |
| Design | Threaded barrel |
| Construction size | M8 x 1 |
| Range | 20…100 mm |
| Resolution | 0.2 mm |
| Operating voltage | 15…30 VDC |
| Switching element function | NO/NC |
| Output function | NPN |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M8 × 1 |
| Housing material | Metal, CuZn, Nickel Plated |
| Ambient temperature | 0…+50 °C |
| Protection class | IP67 |
| Approvals | CE, cULus |
