Absolute Rotary Encoder - Singleturn
SKU: RS-185CA0E-9D14B-H1151

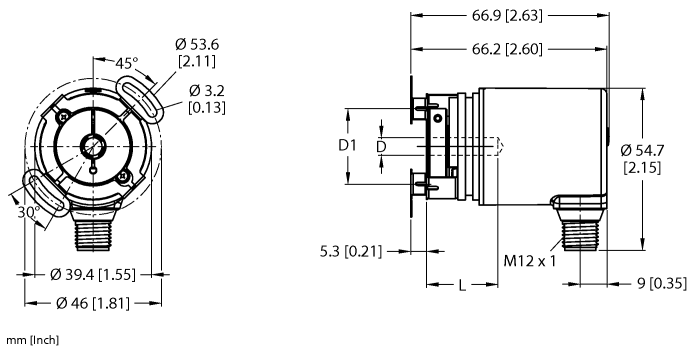

Ø 46 mm · Flange with stator coupling · Blind hole shaft · Connector, M12 × 1
$817.40
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Absolute Rotary Encoder - Singleturn — Industrial Line
- Flange with slotted flex mount, Ø 46 mm
- Hollow shaft, Ø 1/4"
- Optical measuring principle
- Shaft material, stainless steel
- Protection class IP65 on housing and shaft side
- -40 °C…+85 °C
- Max. 6000 rpm (continuous operation: 3000)
- Energy harvesting technology
- 10…30 VDC
- CANopen
- M12 × 1 male connector, 5-pin
- 360° resolved in 14 bit (16384 positions)
The Turck Absolute Rotary Encoder - Singleturn # RS-185CA0E-9D14B-H1151 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270501 -/- Encoder, absolute |
| Encoder line | Industrial-Line |
| Technology | Magnetic |
| Output type | Absolute singleturn |
| Shaft Type | Blind hole shaft |
| Shaft diameter D (mm) | 6.35 |
| Shaft diameter D | 0.25 in |
| Flange diameter | Ø 46 mm |
| Flange type | Flange with stator coupling |
| Measuring range | 0…360° |
| Operating voltage | 10…30 VDC |
| Communication protocol | CANopen |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Die-cast zinc |
| Ambient temperature | -40…+85 °C |
| Protection class shaft | IP65 |
| Protection class | IP67 |
