Absolute Shaft Encoder - (RS-184TA0S-9D14B-H1151)
Turck

Absolute Shaft Encoder, Synchro Flange Ø 36 mm, Solid Shaft Ø 6.35 mm, CANopen, 10…30 VDC, M12 Connector

SKU: RS-184TA0S-9D14B-H1151

$702.50

List price.

Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

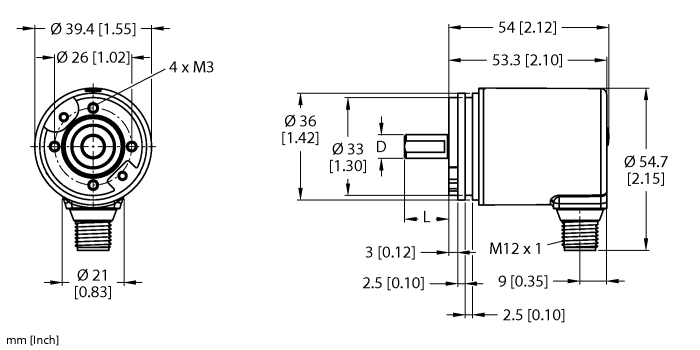

Ø 36 mm · Synchro flange · Solid shaft · Connector, M12 × 1

Absolute Shaft Encoder — Industrial Line

  • Synchro flange, Ø 36 mm
  • Solid shaft, Ø 6.35 mm × 12.5 mm
  • Magnetic measuring principle
  • Shaft material: stainless steel
  • Protection class IP67 on housing and shaft side
  • ‐40…+85 °C
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 10…30 VDC
  • CANopen
  • M12 × 1 male connector, 5-pin

The Turck Absolute Shaft Encoder, Synchro Flange Ø 36 mm, Solid Shaft Ø 6.35 mm, CANopen, 10…30 VDC, M12 Connector RS-184TA0S-9D14B-H1151 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
