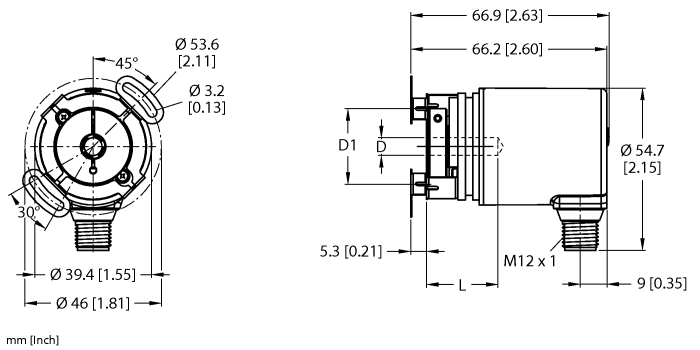

Absolute Rotary Encoder - Singleturn
SKU: RS-181B10E-8BAR-H1151/N0
Ø 46 mm · Flange with stator coupling · Blind hole shaft · Connector, M12 × 1
$948.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Absolute Rotary Encoder - Singleturn — Industrial Line
- Flange with slotted flex mount, Ø 46 mm
- Hollow shaft, Ø 10mm
- Optical measuring principle
- Shaft material, stainless steel
- IP67 rated on the shaft side
- ‐40…+85 °C
- Max. 4000 rev/min
- 15…30 VDC
- Analog output 0…10 V
- M12 × 1 male connector, 5-pin
- 360° resolved in 12 bit (4096 positions)
The Turck Absolute Rotary Encoder - Singleturn # RS-181B10E-8BAR-H1151/N0 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270501 -/- Encoder, absolute |
| Customs tariff number | 9031804000 |
| Country of origin | DE |
| Weight | 1100 g |
| Encoder line | Industrial-Line |
| Technology | Magnetic |
| Output type | Absolute singleturn |
| Shaft Type | Blind hole shaft |
| Shaft diameter D (mm) | 10 |
| Flange diameter | Ø 46 mm |
| Flange type | Flange with stator coupling |
| Measuring range | 0…360° |
| Operating voltage | 15…30 VDC |
| Output function | Analog output |
| Voltage output | 0…10 V |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Die-cast zinc |
| Ambient temperature | -40…+85 °C |
| Protection class shaft | IP67 |
| Protection class | IP67 |
