Absolute Shaft Encoder - (RS-180S8S-7AAR-H1151/N1)
Turck

Absolute Shaft Encoder, Synchro Flange Ø 36 mm, Solid Shaft, 0…45°, Analog Output, 10…30 VDC, M12 Connector

SKU: RS-180S8S-7AAR-H1151/N1

$925.30

List price.

Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

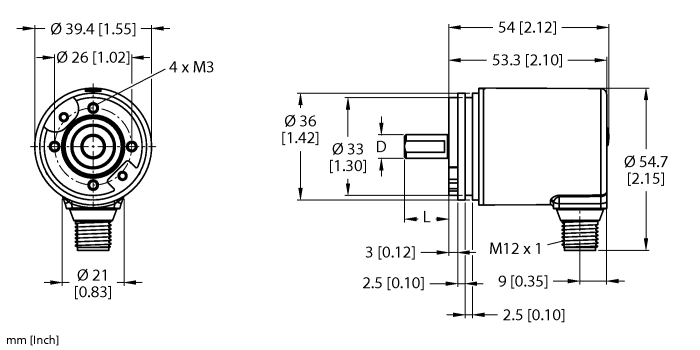

Ø 36 mm · Synchro flange · Solid shaft · Connector, M12 × 1

Absolute Shaft Encoder — Industrial Line

  • Synchro flange, Ø 36 mm
  • Solid shaft, Ø 8 mm × 20 mm
  • Magnetic measuring principle
  • Shaft material: stainless steel
  • IP67 rated on the shaft side
  • ‐40…+85 °C
  • Max. 4000 rev/min
  • 10…30 VDC
  • Analog output 4…20 mA
  • Counting mode CW
  • M12 × 1 male connector, 5-pin
  • 45° resolved in 12 bit (4096 positions)

The Turck Absolute Shaft Encoder, Synchro Flange Ø 36 mm, Solid Shaft, 0…45°, Analog Output, 10…30 VDC, M12 Connector RS-180S8S-7AAR-H1151/N1 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
