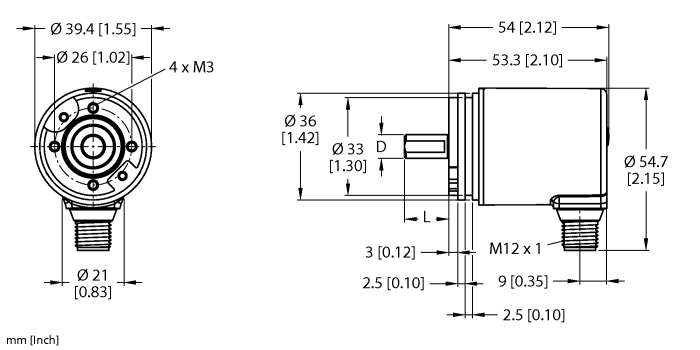

Absolute Shaft Encoder
SKU: RS-180S8S-7AAR-H1151/N0
Ø 36 mm · Synchro flange · Solid shaft · Connector, M12 × 1
$925.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Absolute Shaft Encoder — Industrial Line
- Synchro flange, Ø 36 mm
- Solid shaft, Ø 8 mm × 20 mm
- Magnetic measuring principle
- Shaft material: stainless steel
- Schutzart IP67 gehäuse- und wellenseitig
- ‐40…+85 °C
- max. 4000 U/min (Dauerbetrieb: 2000 U/min)
- Energy Harvesting Technologies
- 10…30 VDC
- Analog output 4…20 mA
- M12 × 1 male connector, 5-pin
- 360° resolved in 12 bit (4096 positions)
The Turck Absolute Shaft Encoder # RS-180S8S-7AAR-H1151/N0 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270501 -/- Encoder, absolute |
| Weight | 1100 g |
| Encoder line | Industrial-Line |
| Technology | Magnetic |
| Output type | Absolute singleturn |
| Shaft Type | Solid shaft |
| Flange diameter | Ø 36 mm |
| Flange type | Synchro flange |
| Measuring range | 0…360° |
| Operating voltage | 10…30 VDC |
| Output function | Analog output |
| Current output | 4…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Die-cast zinc |
| Ambient temperature | -40…+85 °C |
| Protection class shaft | IP67 |
