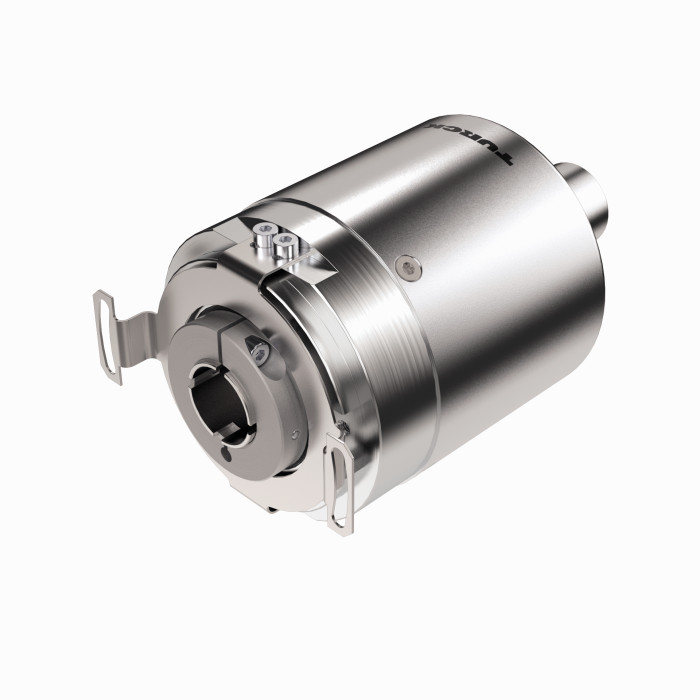

Absolute Rotary Encoder - Singleturn
SKU: RS-108BA1E-9N19B-B3M12
Ø 63 mm · Flange with stator coupling · Blind hole shaft · Connector, 3 x M12
$1,616.60
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Absolute Rotary Encoder - Singleturn — Industrial Line
- Flange with slotted flex mount, Ø 63mm
- Hollow shaft, Ø 3/8 in. (9.525mm)
- Optical measuring principle
- Shaft material, stainless steel
- IP67 rated on shaft side
- -40…+80 °C
- Max. 9000 rpm
- 10…30 VDC
- EtherNet/IP
- M12 x 1 male connector for power, 4-Pin A-code
- (2X) M12 female connector for data, 4-pin-D-code
- Singleturn resolution scalable up to 19 bit, default 18 bit
The Turck Absolute Rotary Encoder - Singleturn # RS-108BA1E-9N19B-B3M12 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270501 -/- Encoder, absolute |
| Customs tariff number | 9031499000 |
| Country of origin | DE |
| Weight | 1100 g |
| Encoder line | Industrial-Line |
| Technology | Optical |
| Output type | Absolute singleturn |
| Shaft Type | Blind hole shaft |
| Shaft diameter D (mm) | 9.525 |
| Shaft diameter D | 0.375 in |
| Flange diameter | Ø 63 mm |
| Flange type | Flange with stator coupling |
| Measuring range | 0…360° |
| Operating voltage | 10…30 VDC |
| Communication protocol | EtherNet/IP |
| Electrical connection | Connector, 3 x M12 |
| Housing material | Aluminium |
| Ambient temperature | -40…+80 °C |
| Protection class shaft | IP67 |
| Protection class | IP67 |
