Absolute Rotary Encoder - Multiturn
SKU: RM-35I12T-5C25B-H1181

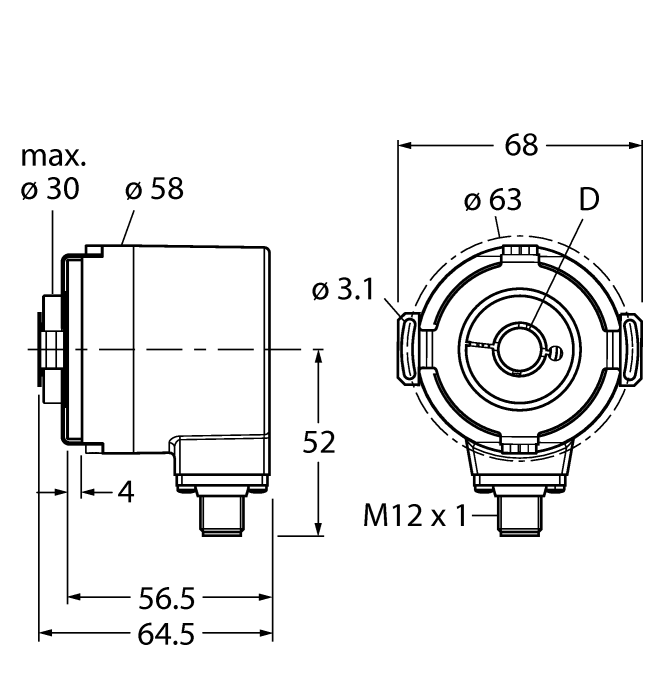

Ø 58 mm · Flange with stator coupling · Blind hole shaft · Connector, M12 × 1
$1,448.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Absolute Rotary Encoder - Multiturn — Industrial Line
- Flange with stator coupling, Ø 58 mm
- Hollow shaft, Ø 12 mm
- Optical measuring principle
- Shaft material: stainless steel
- Protection class IP65 on shaft side
- -40…+90 °C
- Max. 6000 rpm
- 10…30 VDC
- SSI, Binär
- M12 connector, 8-pin
- Singleturn, 13-bit resolution
- Multiturn, 12-bit resolution
The Turck Absolute Rotary Encoder - Multiturn RM-35I12T-5C25B-H1181 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101383867 |
| eCl@ss-Code (V5.1.4) | 27270501 -/- Encoder, absolute |
| Customs tariff number | 9031804000 |
| Country of origin | DE |
| Weight | 549.24 g |
| Encoder line | Industrial-Line |
| Technology | Optical |
| Output type | Absolute multiturn |
| Shaft Type | Blind hole shaft |
| Shaft diameter D (mm) | 12 |
| Flange diameter | Ø 58 mm |
| Flange type | Flange with stator coupling |
| Operating voltage | 10…30 VDC |
| Communication protocol | SSi |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Die-cast zinc |
| Ambient temperature | -40…+90 °C |
| Protection class housing | IP67 |
| Protection class shaft | IP65 |
