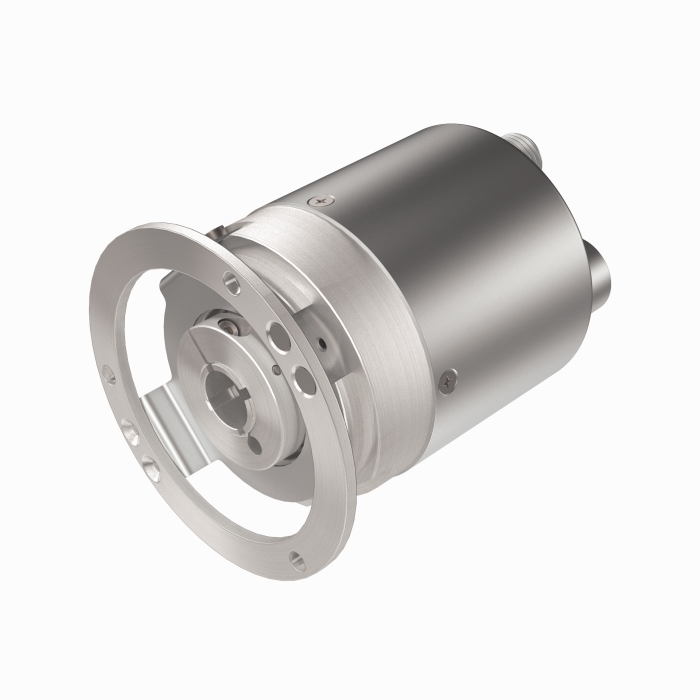

Absolute Rotary Encoder - Multiturn
SKU: RM-106B12E-9D32B-B1M12/N46
Ø 63 mm · Flange with stator coupling · Blind hole shaft · Connector, M12 × 1
$1,567.40
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Absolute Rotary Encoder - Multiturn — Industrial Line
- Flange with slotted flex mount, Ø 63 mm
- Hollow shaft, Ø 12mm
- Optical measuring principle
- Shaft material, stainless steel
- Protection class IP65 on the shaft side
- ‐40... +80°C
- max. 6000 rev / min
- CANopen
- M12 x 1 connector
- Singleturn resolution scalable to 16 bit (default 16 bit)
- Multiturn resolution scalable to 16 bit (default 16 bit)
The Turck Absolute Rotary Encoder - Multiturn # RM-106B12E-9D32B-B1M12/N46 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270501 -/- Encoder, absolute |
| Customs tariff number | 9031499000 |
| Country of origin | DE |
| Weight | 1100 g |
| Encoder line | Industrial-Line |
| Technology | Optical |
| Output type | Absolute multiturn |
| Shaft Type | Blind hole shaft |
| Shaft diameter D (mm) | 12 |
| Flange diameter | Ø 63 mm |
| Flange type | Flange with stator coupling |
| Operating voltage | 10…30 VDC |
| Communication protocol | CANopen |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Die-cast zinc |
| Ambient temperature | -40…+80 °C |
| Protection class shaft | IP65 |
| Protection class | IP67 |
