Absolute Rotary Encoder - Multiturn
SKU: RM-100CA0T-5C12S12M-H1181

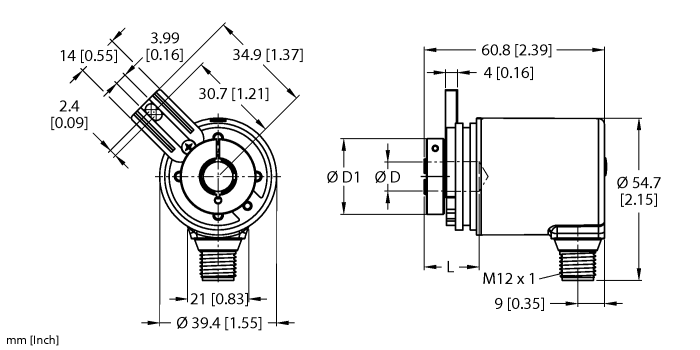

Ø 36 mm · Flange with mounting element · Blind hole shaft · Connector, M12 × 1
$1,056.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Absolute Rotary Encoder - Multiturn — Industrial Line
- Flange with long torque stop
- Hollow shaft, Ø 1/4"
- Optical measuring principle
- Shaft material, stainless steel
- IP67 rated on the shaft side
- ‐40…+85 °C
- Max. 4000 rev/min
- 10-30 VDC
- SSI (Binary Code)
- M12 connection, 8-pin
- Singleturn, 13-bit resolution
- Multiturn, 12-bit resolution
The Turck Absolute Rotary Encoder - Multiturn # RM-100CA0T-5C12S12M-H1181 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270501 -/- Encoder, absolute |
| Customs tariff number | 9031804000 |
| Country of origin | DE |
| Weight | 1100 g |
| Encoder line | Industrial-Line |
| Technology | Magnetic |
| Output type | Absolute multiturn |
| Shaft Type | Blind hole shaft |
| Shaft diameter D (mm) | 6.35 |
| Shaft diameter D | 0.25 in |
| Flange diameter | Ø 36 mm |
| Flange type | Flange with mounting element |
| Operating voltage | 10…30 VDC |
| Communication protocol | SSi |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Die-cast zinc |
| Ambient temperature | -40…+85 °C |
| Protection class shaft | IP67 |
| Protection class | IP67 |
