Inductive Angle Sensor - With Analog Output
SKU: RI360P1-DSU35TC-ELI-EXI
Flange without mounting element · Terminal chamber
$512.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Angle Sensor — With Analog Output — Premium Line
- Rectangular, housing DSU35
- Plastic, PP-GF30-VO
- Detecting angular positions of 0° to 360°
- P1-Ri-DSU35 positioning element included in delivery
- Measuring range programmable via switch in the Terminal chamber
- Immune to electromagnetic interference
- Resolution, 12-bit
- 2‐wire, 14…30 VDC
- Analog output
- 4 … 20 mA
- Terminal chamber
- ATEX category II 2 G, Ex Zone 1
- ATEX category II 2 D, Ex Zone 21
The Turck Inductive Angle Sensor - With Analog Output # RI360P1-DSU35TC-ELI-EXI is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101328783 |
| eCl@ss-Code (V5.1.4) | 27270501 -/- Encoder, absolute |
| Customs tariff number | 3926909989 |
| Country of origin | CN |
| Weight | 205 g |
| Encoder line | Premium-Line |
| Technology | Contactless |
| Output type | Absolute singleturn |

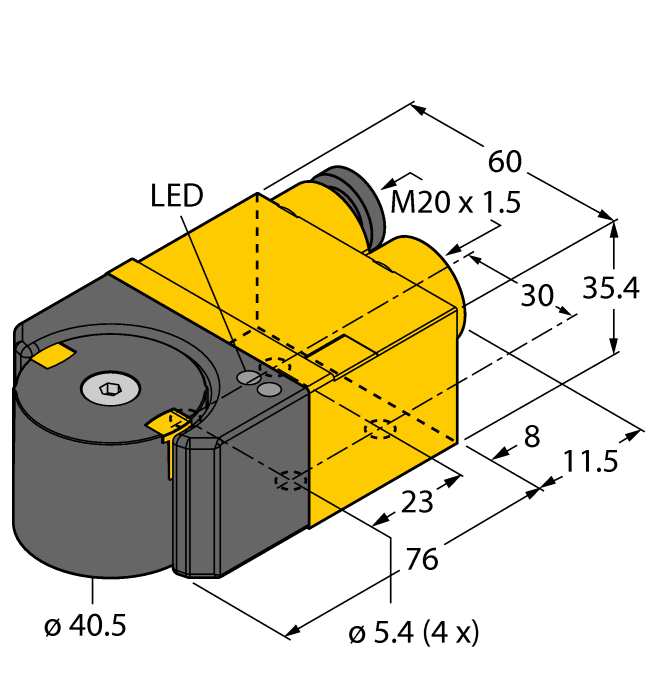

| Construction size | 76 x 60 x 35.4 mm |
| Flange type | Flange without mounting element |
| Measuring range | 0…360° |
| Operating voltage | 14…30 VDC |
| Output function | Analog output |
| Current output | 4…20 mA |
| Electrical connection | Terminal chamber |
| Housing material | Plastic, PP-GF30 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP68/IP69K |
| Approvals | ATEX II 2 G, ATEX II 3 G, ATEX II 2 D, ATEX II 3 D |
