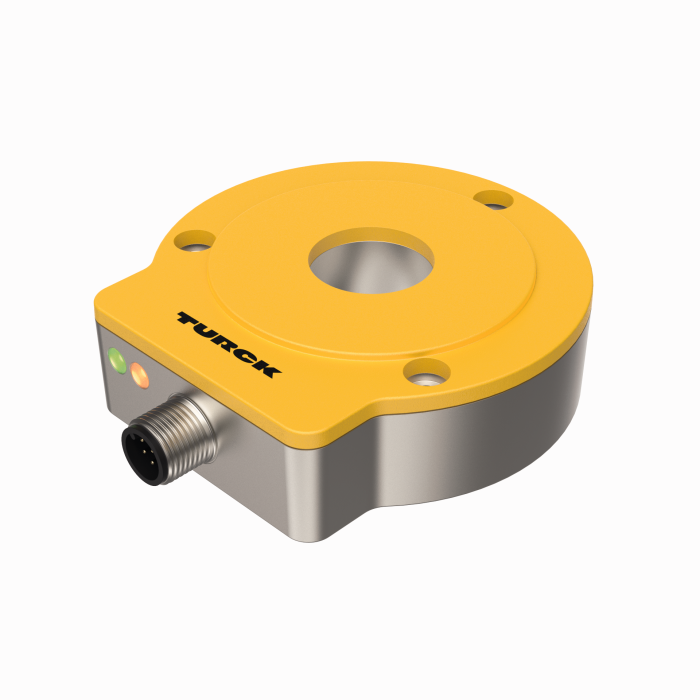

Contactless Encoder - Incremental
SKU: RI360P0-QR24M0-INCRX2-H1181/0064
Flange without mounting element · Hollow shaft · Connector, M12 × 1
$466.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Contactless Encoder — Incremental — Premium Line
- Compact, rugged housing
- Many mounting possibilities
- Status displayed via LED
- Measuring range displayed via LED
- Immune to electromagnetic interference
- 64 pulses per revolution (default)
- 360, 512, 1000, 1024, 2048, 2500, 3600, 4096, 5000, parameterizable via Easy-Teach
- Free parametrization of the pulse count in the range from 1 to 5000 via PACTware
- Position of z-track can be set via Easy-Teach
- Burst function, absolute angular position output incrementally via Easy-Teach pulse
- Max. output frequency: 200 kHz
- 10…30 VDC
- Male M12 x 1, 8-pin
- Push-pull A, B, Z, A (inverse), B (inverse)
The Turck Contactless Encoder - Incremental # RI360P0-QR24M0-INCRX2-H1181/0064 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270502 -/- Encoder, incremental |
| Customs tariff number | 3926909989 |
| Country of origin | CN |
| Weight | 361 g |
| Encoder line | Premium-Line |
| Technology | Contactless |
| Output type | Incremental |
| Shaft Type | Hollow shaft |
| Shaft diameter D (mm) | 6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20 |
| Construction size | 81 x 78 x 24 mm |
| Flange type | Flange without mounting element |
| Resolution, incremental | 64 ppr |
| Operating voltage | 10…30 VDC |
| Output function | Push-Pull/HTL |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal/plastic, ZnAlCu1/PBT-GF30-V0 |
| Ambient temperature | -25…+85 °C |
| Protection class | IP68/IP69K |
