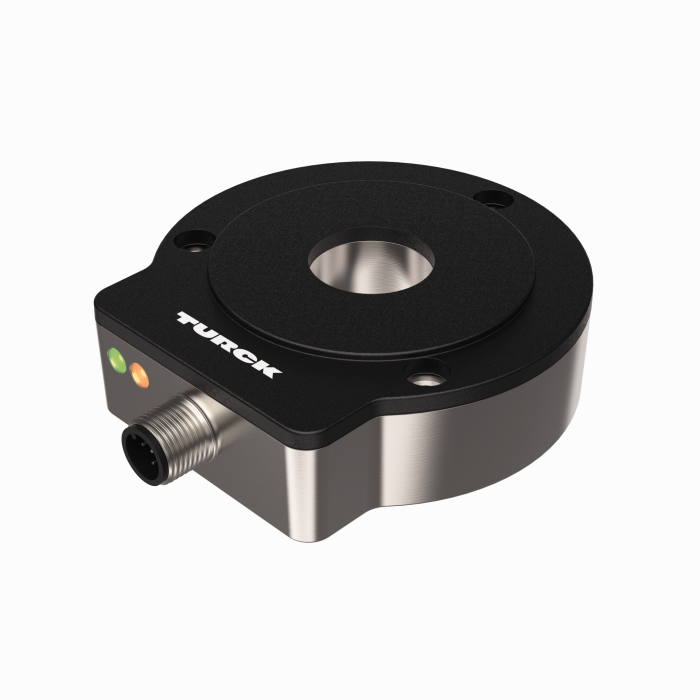

Contactless Encoder with Stainless Steel Housing - Analog
SKU: RI360P0-EQR24M0-ELIU5X2-H1151
Flange without mounting element · Hollow shaft · Connector, M12 × 1
$711.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Contactless Encoder with Stainless Steel Housing — Analog — Premium Line
- Compact, rugged housing
- Active face, plastic PA12-GF30
- Housing, stainless steel V4A (1.4404)
- Status displayed via LED
- Measuring range indicated via LED
- Immune to electromagnetic interference
- Measuring range programmable via Easy Teach
- Output signal programmable via Easy Teach
- Resolution, 16-bit
- 15…30 VDC
- 0…10 V and 4…20 mA
- Male M12 x 1, 5-pin
The Turck Contactless Encoder with Stainless Steel Housing - Analog # RI360P0-EQR24M0-ELIU5X2-H1151 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101389159 |
| eCl@ss-Code (V5.1.4) | 27270501 -/- Encoder, absolute |
| Customs tariff number | 3926909989 |
| Country of origin | CN |
| Weight | 375 g |
| Encoder line | Premium-Line |
| Technology | Contactless |
| Output type | Absolute singleturn |
| Shaft Type | Hollow shaft |
| Shaft diameter D (mm) | 6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20 |
| Construction size | 81 x 78 x 24 mm |
| Flange type | Flange without mounting element |
| Measuring range | 0…360° |
| Operating voltage | 15…30 VDC |
| Output function | Analog output |
| Voltage output | 0…10 V |
| Current output | 4…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/PA12-GF30 |
| Ambient temperature | -25…+85 °C |
| Protection class | IP68/IP69K |
