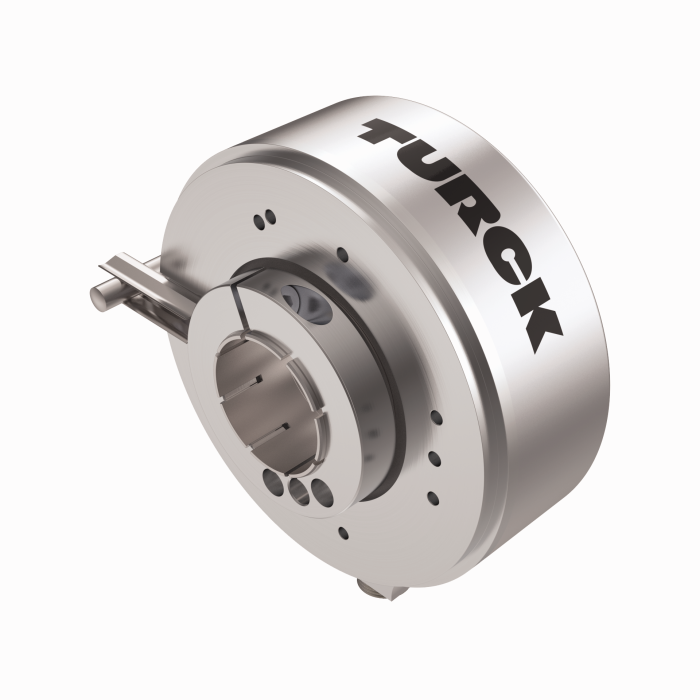

Incremental Hollow Shaft Rotary Encoder
SKU: RI-43HA4S8-2F1024-10MIL/N33/N40
Ø 100 mm · Flange with mounting element · Hollow shaft · Connector, Mil-Spec - 10 pin
$725.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Incremental Hollow Shaft Rotary Encoder — Industrial Line
- Flange with long arm bracket, Ø 100 mm
- Hollow shaft, Ø 5/8”
- Code (N33) A leads B, Z gated with B+. Z is 180 deg wide.
- Code (N40) special wiring see catalog B1027 page E29
- Optical measuring principle
- Shaft material, stainless steel
- Protection class IP65 on shaft side
- -40…+70 °C
- Max. 6000 rpm
- 5…30 VDC
- Male connector, MS 3106-18-1P, 10-pole
- Push-pull, with inverted signals
- Pulse frequency max. 300 kHz
- 1024 pulses per revolution
The Turck Incremental Hollow Shaft Rotary Encoder # RI-43HA4S8-2F1024-10MIL/N33/N40 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270502 -/- Encoder, incremental |
| Customs tariff number | 9031499000 |
| Weight | 1100 g |
| Encoder line | Industrial-Line |
| Technology | Optical |
| Output type | Incremental |
| Shaft Type | Hollow shaft |
| Shaft diameter D (mm) | 15.875 |
| Shaft diameter D | 0.625 in |
| Flange diameter | Ø 100 mm |
| Flange type | Flange with mounting element |
| Resolution, incremental | 1024 ppr |
| Operating voltage | 5…30 VDC |
| Output function | Push-Pull 7272, with inverted signals |
| Electrical connection | Connector, Mil-Spec - 10 pin |
| Housing material | Die-cast zinc |
| Ambient temperature | -40…+70 °C |
| Protection class shaft | IP65 |
| Protection class | IP65 |
