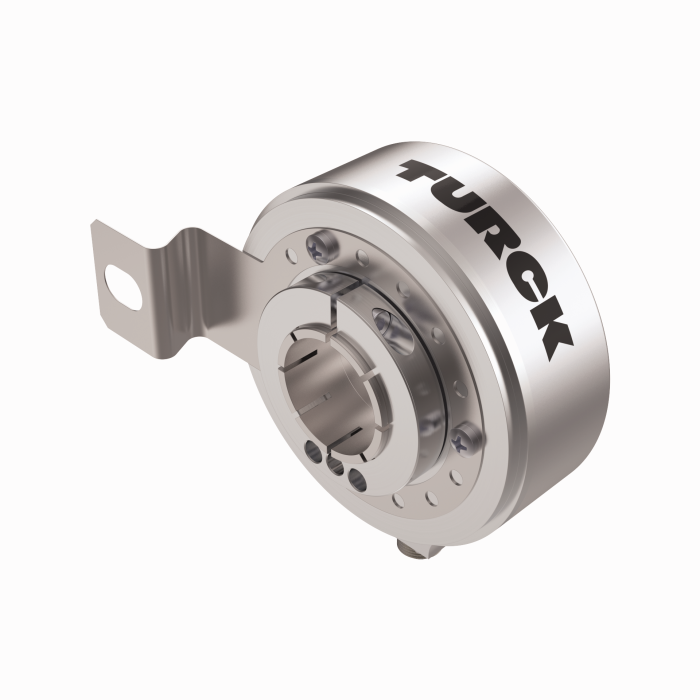

Incremental Hollow Shaft Rotary Encoder
SKU: RI-43H42E2-AA2048-H1181
Ø 100 mm · Flange with mounting element · Hollow shaft · Connector, M12 × 1
$725.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Incremental Hollow Shaft Rotary Encoder — Industrial Line
- Flange with 4 – ½” C-Face Tether, Ø 100 mm
- Hollow shaft, Ø 42mm
- Optical measuring principle
- Shaft material, stainless steel
- Protection class IP65 on the shaft side
- ‐40... +80°C
- max. 6000 rev / min
- 2048 pulses per revolution
The Turck Incremental Hollow Shaft Rotary Encoder # RI-43H42E2-AA2048-H1181 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 9031499000 |
| Country of origin | DE |
| Weight | 1100 g |
| Encoder line | Industrial-Line |
| Technology | Optical |
| Shaft Type | Hollow shaft |
| Shaft diameter D (mm) | 42 |
| Flange diameter | Ø 100 mm |
| Flange type | Flange with mounting element |
| Resolution, incremental | 2048 ppr |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Die-cast zinc |
| Ambient temperature | -40…+80 °C |
| Protection class shaft | IP65 |
| Protection class | IP65 |
