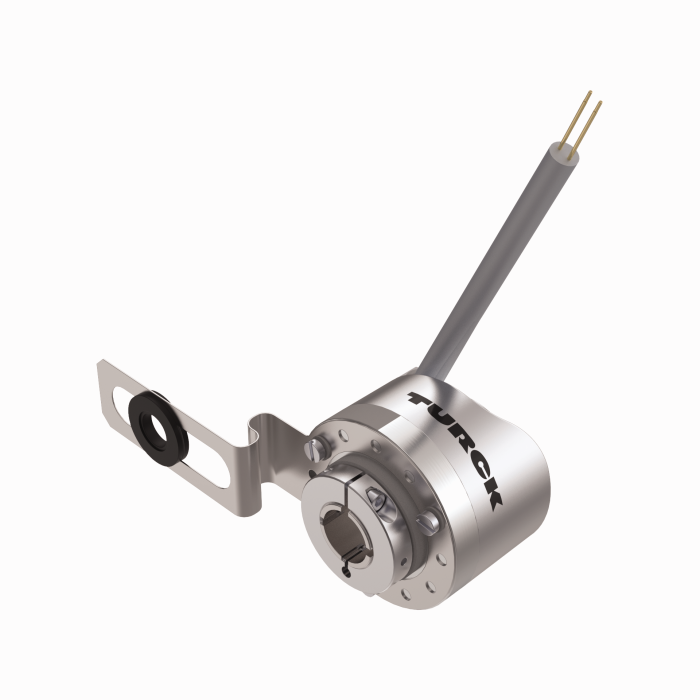

Incremental Hollow Shaft Rotary Encoder
SKU: RI-12HA3S1-2B800-CT5M
Flange with mounting element · Hollow shaft · Cable
$450.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Incremental Hollow Shaft Rotary Encoder — Industrial Line
- Flange with tether arm for 40-75mm mounting diameters
- Hollow shaft, Ø 1/2”
- Optical measuring principle
- Shaft material: stainless steel
- IP67 rated on shaft side
- ‐30 …+85 °C (with flexible use of cable -20 …+85 °C)
- Max. 6000 rpm (continuous operation 3000 rpm)
- 10…30 VDC
- Cable connection, 8-pin
- Push-pull, with inverted signals
- Pulse frequency max. 300 kHz
- 800 pulses per revolution
The Turck Incremental Hollow Shaft Rotary Encoder # RI-12HA3S1-2B800-CT5M is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270502 -/- Encoder, incremental |
| Customs tariff number | 9031499000 |
| Country of origin | DE |
| Weight | 1100 g |
| Encoder line | Industrial-Line |
| Technology | Optical |
| Output type | Incremental |
| Shaft Type | Hollow shaft |
| Shaft diameter D (mm) | 12.7 |
| Shaft diameter D | 0.5 in |
| Flange type | Flange with mounting element |
| Resolution, incremental | 800 ppr |
| Operating voltage | 10…30 VDC |
| Output function | Push-Pull/HTL, with inverted signals |
| Electrical connection | Cable |
| Housing material | Die-cast zinc |
| Ambient temperature | -30…+85 °C |
| Protection class shaft | IP67 |
| Protection class | IP67 |
