Incremental Encoder - (RI-12H10E1-2B3600-12M23)
Turck

Incremental Encoder, Flange With Stator Coupling Ø 65 mm, Hollow Shaft Ø 10 mm, 3600 ppr, Push-Pull/HTL, 10…30 VDC, Connector

SKU: RI-12H10E1-2B3600-12M23

$450.00

List price.

Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

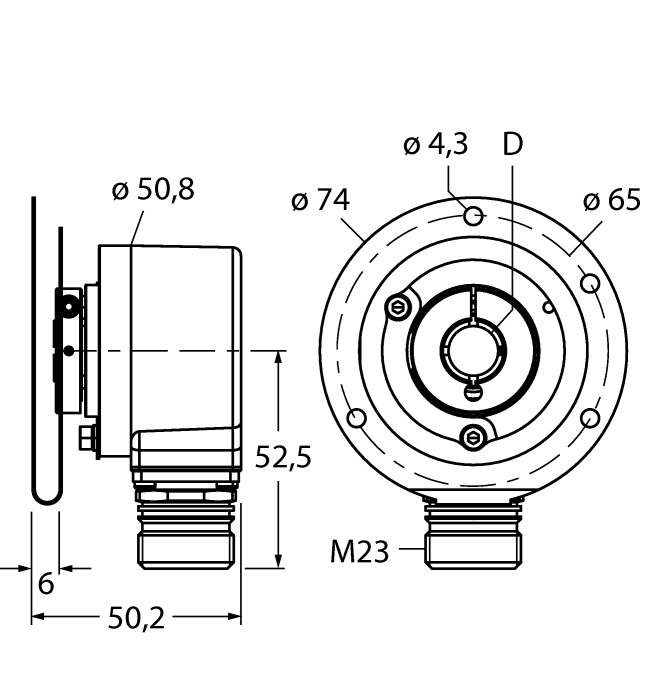

Ø 65 mm · Flange with stator coupling · Hollow shaft · Connector

Incremental Encoder — Industrial Line

  • Flange with stator coupling, Ø 65mm
  • Hollow shaft, Ø 10mm
  • Optical measuring principle
  • Shaft material, stainless steel
  • Protection class IP67 on housing and shaft side
  • ‐40…+85 °C
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 10…30 VDC
  • M23 male, 12-pin
  • Push-pull, with inverted signals
  • Pulse frequency max. 300 kHz
  • 3600 pulses per revolution

The Turck Incremental Encoder, Flange With Stator Coupling Ø 65 mm, Hollow Shaft Ø 10 mm, 3600 ppr, Push-Pull/HTL, 10…30 VDC, Connector RI-12H10E1-2B3600-12M23 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
