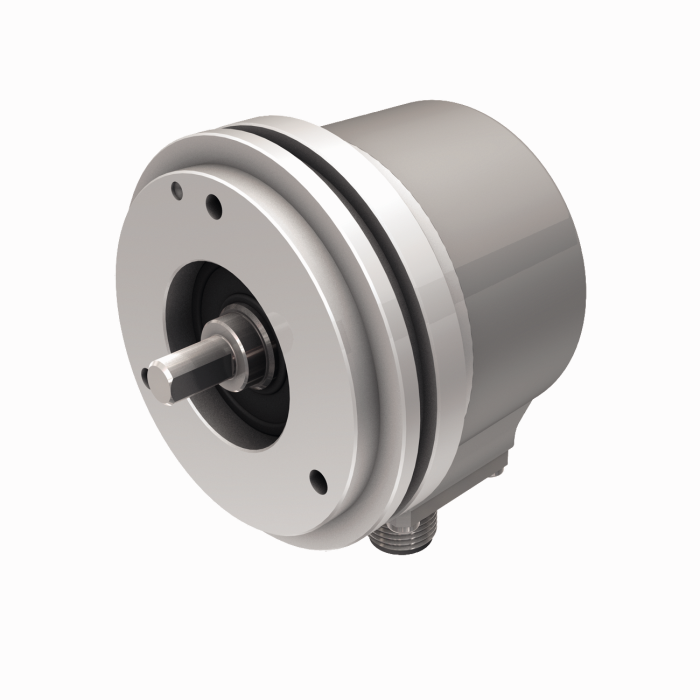

Incremental Shaft Encoder - (RI-10S6S-2K2000-H1481)
Turck

Incremental Shaft Encoder, Synchro Flange Ø 58 mm, Solid Shaft Ø 0.24 in, 2000 ppr, Push-Pull 7272, 5…30 VDC, M12 Connector

SKU: RI-10S6S-2K2000-H1481

$450.00

List price.

Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

Ø 58 mm · Synchro flange · Solid shaft · Connector, M12 × 1

Incremental Shaft Encoder — Industrial Line

  • Servo flange, Ø 58 mm
  • Solid shaft, Ø 6mm x 10mm
  • Optical measuring principle
  • Shaft material, stainless steel
  • Protection class IP67 on housing and shaft side
  • ‐40…+85 °C
  • Max. 6000 rpm (continuous operation 3000 rpm)
  • 5…30 VDC
  • Male connector, M12 x 1, 8-pole
  • Push-pull, with inverted signals
  • Pulse frequency max. 300 kHz
  • 2000 pulses per revolution

The Turck Incremental Shaft Encoder, Synchro Flange Ø 58 mm, Solid Shaft Ø 0.24 in, 2000 ppr, Push-Pull 7272, 5…30 VDC, M12 Connector RI-10S6S-2K2000-H1481 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
