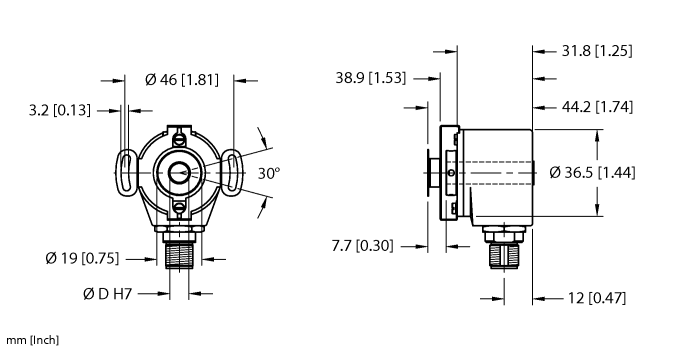

Incremental Hollow Shaft Rotary Encoder
SKU: RI-05I6E-2I2500-H1181
Ø 19 mm · Flange with slotted flex mount · Hollow shaft · Connector, M12 × 1
$668.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Incremental Hollow Shaft Rotary Encoder — Industrial Line
- Flange with slotted flex mount, Ø 19 mm
- Hollow shaft, Ø 6 mm
- Optical measuring principle
- Shaft material: Brass
- Protection class IP50 on shaft side
- ‐20…+85 °C
- Max. 6000 rpm
- 5…18 VDC
- Male connector, M12 × 1, 8-pin
- Push-pull 7272, with inversion
- Pulse frequency max. 200 kHz
- 2500 pulses per revolution
The Turck Incremental Hollow Shaft Rotary Encoder # RI-05I6E-2I2500-H1181 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270502 -/- Encoder, incremental |
| Customs tariff number | 9031499000 |
| Country of origin | IN |
| Weight | 1100 g |
| Encoder line | Industrial-Line |
| Technology | Optical |
| Output type | Incremental |
| Shaft Type | Hollow shaft |
| Shaft diameter D (mm) | 6 |
| Flange diameter | Ø 19 mm |
| Flange type | Flange with slotted flex mount |
| Resolution, incremental | 2500 ppr |
| Operating voltage | 5…18 VDC |
| Output function | Push-Pull 7272, with inverted signals |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Aluminum chromated |
| Ambient temperature | -20…+85 °C |
| Protection class shaft | IP50 |
| Protection class | IP65 |
