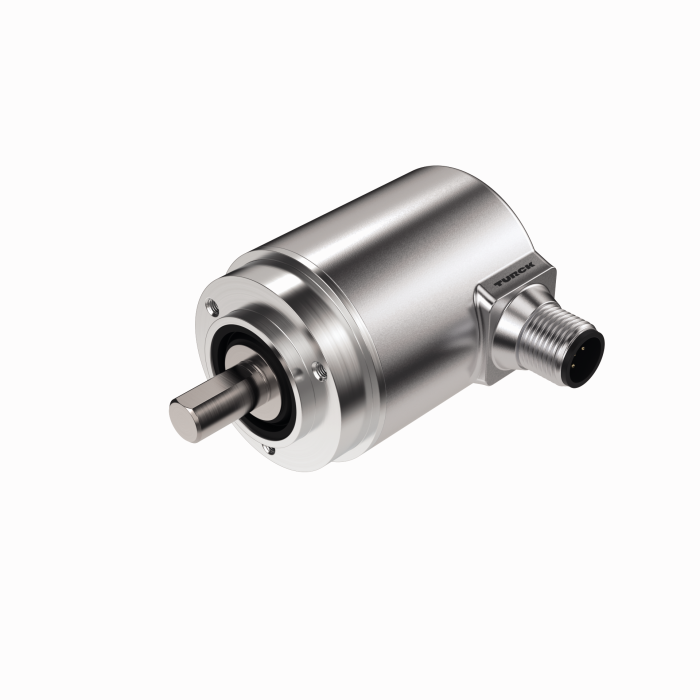

Absolute Rotary Encoder - Singleturn - (RES-184S6C-9F14B-H1151)
Turck

Absolute Rotary Encoder - Singleturn, Clamping Flange Ø 36 mm, Solid Shaft Ø 6 mm, 0…360°, SAE J1939, 10…30 VDC, M12 Connector

SKU: RES-184S6C-9F14B-H1151

$596.00

List price.

Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

Ø 36 mm · Clamping flange · Solid shaft · Connector, M12 × 1

Absolute Rotary Encoder - Singleturn — Industrial Line

  • Clamping flange, Ø 36 mm
  • Solid shaft, Ø 6 mm × 12.5 mm
  • Magnetic measuring principle
  • Shaft material: stainless steel
  • IP67 rated on the shaft side
  • ‐40…+85 °C
  • Max. 4000 rev/min
  • 10…30 VDC
  • SAE J1939
  • M12 × 1 male, 5-pin
  • 360° resolved in 14 bit (16384 positions)

The Turck Absolute Rotary Encoder - Singleturn, Clamping Flange Ø 36 mm, Solid Shaft Ø 6 mm, 0…360°, SAE J1939, 10…30 VDC, M12 Connector RES-184S6C-9F14B-H1151 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
