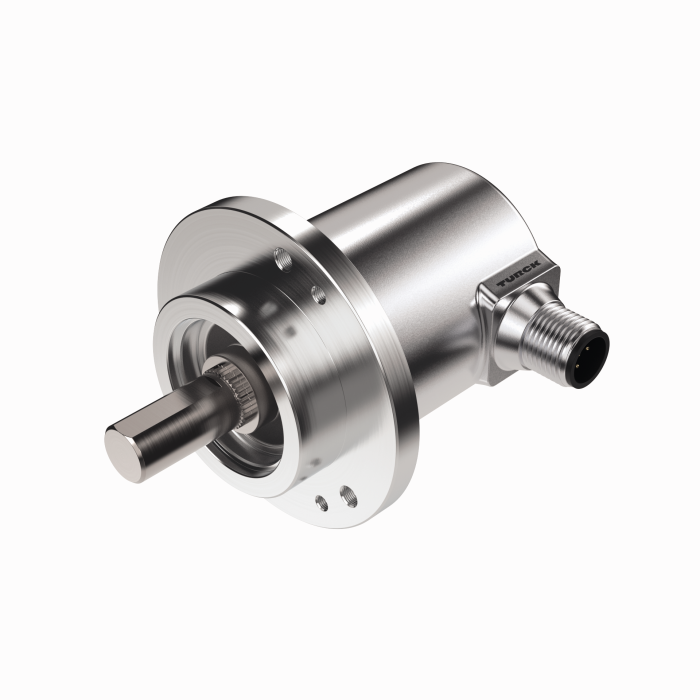

Absolute Rotary Encoder - Multiturn - IO-Link (REM-E-195T10C-IOL32B-H1141)
Turck

Absolute Rotary Encoder - Multiturn - IO-Link, Clamping Flange Ø 58 mm, Solid Shaft Ø 10 mm, IO-Link, 18…30 VDC, M12 Connector

SKU: REM-E-195T10C-IOL32B-H1141

$735.70

List price.

Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

Ø 58 mm · Clamping flange · Solid shaft · Connector, M12 × 1

Absolute Rotary Encoder - Multiturn — IO-Link — Efficiency Line

  • Ø 58 mm clamping flange
  • Solid shaft, Ø 10mm x 20mm
  • Optical measuring principle
  • Shaft material, stainless steel
  • Protection class IP64 on housing and shaft side
  • ‐20…+70 °C
  • Max. 4000 rpm (continuous operation 2000 rpm)
  • Energy harvesting technology
  • 18….30 VDC
  • M12 x 1 male connection, 4-pin
  • Singleturn resolution 14 bit scalable, default 14 bit
  • Multiturn resolution scalable only to 18 bits over total resolution, default 18 bits
  • Total resolution 32 bit scalable, default 32 bit

The Turck Absolute Rotary Encoder - Multiturn - IO-Link, Clamping Flange Ø 58 mm, Solid Shaft Ø 10 mm, IO-Link, 18…30 VDC, M12 Connector REM-E-195T10C-IOL32B-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
