Capacitive Sensor
SKU: NC50-CP80-VN4X2/S10
80 x 80 x 40.5 mm, CP80 · 50 mm · Complementary contact, NPN · Terminal chamber
$530.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Capacitive Sensor
- Rectangular, height 40.5 mm
- Active face on top
- Plastic, PBT-GF30-VO
- Fine adjustment via potentiometer
- DC 4-wire, 10…65 VDC
- Complementary contact, NPN output
- Terminal chamber
The Turck Capacitive Sensor # NC50-CP80-VN4X2/S10 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101090260 |
| eCl@ss-Code (V5.1.4) | 27270102 -/- Capacitive proximity switch |
| Customs tariff number | 8517620010 |
| Country of origin | DE |
| Weight | 229 g |
| Design | Rectangular |

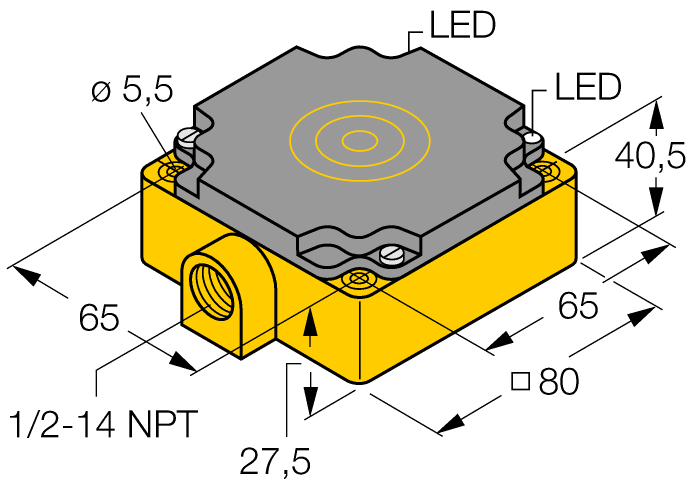

| Construction size | 80 x 80 x 40.5 mm, CP80 |
| Rated switching distance | 50 mm |
| Output function | Complementary contact, NPN |
| Electrical connection | Terminal chamber |
| Housing material | Plastic, PBT-GF30-V0 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Approvals | UL |
