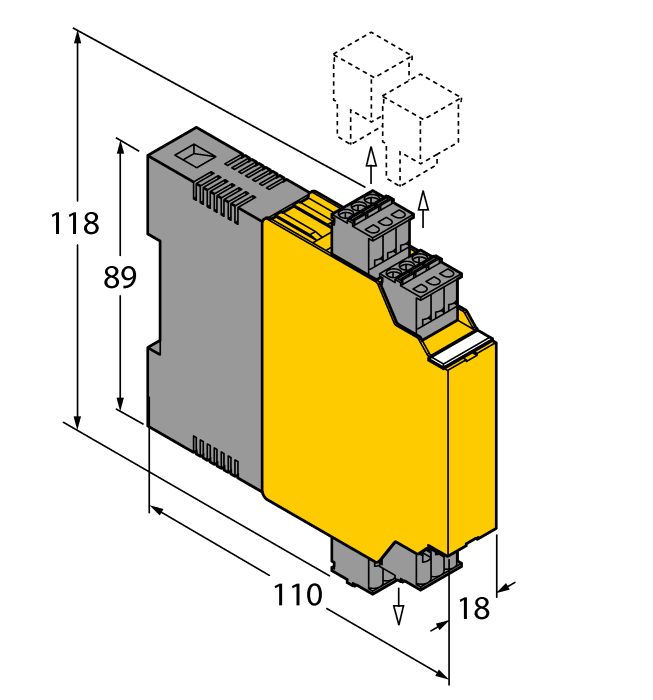

Positive Potential Barrier
SKU: MZB10P
Positive Potential Barrier
$164.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Positive Potential Barrier
- 6 VDC Systems
- 1- Channel
- DC Positive Polarity
- 75 Ohm resistance
- Working voltage 6V at 10µA
- Fuse rating 50mA
- Voltage max 7V
- 6V discrete (on/off) connection
- Solenoids/audible/visible alarms
- Protection class IP20
- Removable screw terminals
- -20° to 60°C (-4° to 140°F)
- 35mm Din Rail
- Class I Division 2 approved
The Turck Positive Potential Barrier # MZB10P is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 8536308000 |
| Country of origin | IN |
| Weight | 101.9 g |
| Device type | Positive Potential Barrier |
| Design | Modular housing |
| Extras | Removable terminals |
| Number of channels | 1 |
| Ex version | yes |
| Power supply | 6 VDC |
