Magnetically actuated linear position sensor
SKU: LTX12E-ER10-LI0X3-H1151
Magnetostrictive · 304.8 mm [12.00 in] · Analog output · Connector, M12 × 1
$2,239.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

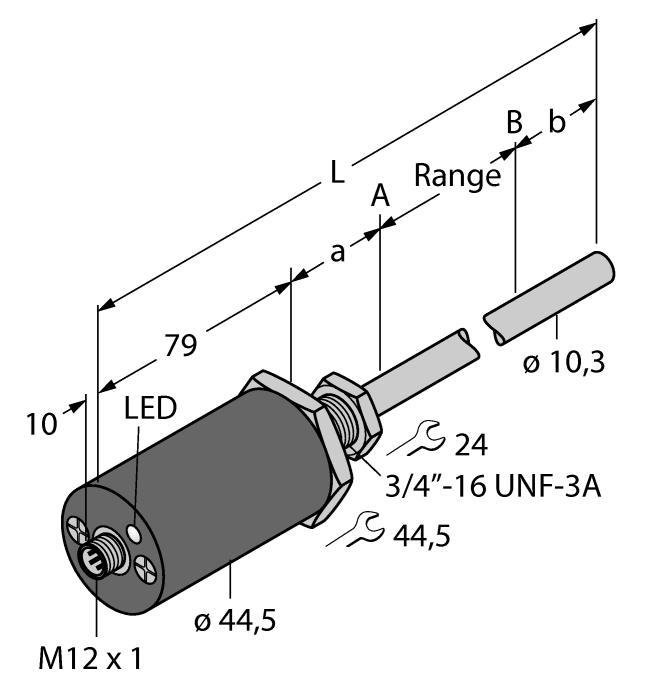

Magnetically actuated linear position sensor
- EZ-Track Linear Displacement Transducer
The Turck Magnetically actuated linear position sensor # LTX12E-ER10-LI0X3-H1151 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 9030333800 |
| Country of origin | US |
| Weight | 1100 g |
| Design | Rod |
| Measuring principle | Magnetostrictive |
| Measuring range | 304.8 mm [12.00 in] |
| Output function | Analog output |
| Current output | 4…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless steel, 1.4301 (AISI 304) |
| Ambient temperature | -40…+85 °C |
| Protection class | IP68 |
| Approvals | CE |
