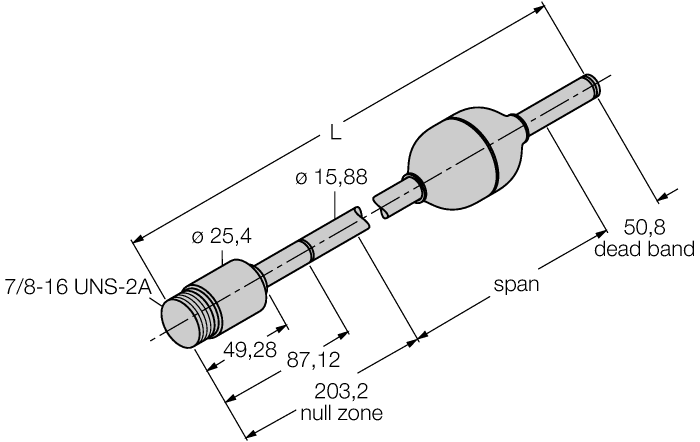

Magnetically actuated linear position sensor - Analog
SKU: LT60E-R16-3LI0-EX-B1140
Magnetostrictive · 1524 mm [60.00 in] · Analog output · Connector, 7/8″
$1,639.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Magnetically actuated linear position sensor — Analog
- EZ-Track Linear Displacement Transducer
The Turck Magnetically actuated linear position sensor - Analog # LT60E-R16-3LI0-EX-B1140 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 8543709860 |
| Country of origin | US |
| Weight | 1100 g |
| Measuring principle | Magnetostrictive |
| Measuring range | 1524 mm [60.00 in] |
| Operating voltage | 13.5…30 VDC |
| Output function | Analog output |
| Current output | 20…4 mA |
| Electrical connection | Connector, 7/8″ |
| Housing material | Stainless steel, 1.4435 (AISI 316L) |
| Ambient temperature | -40…+70 °C |
| Protection class | IP68 |
| Approvals | ATEX, FM C1D1, FM C1D2, CE |
