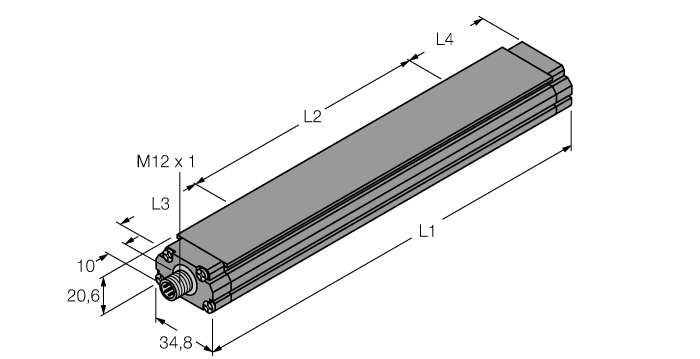

Magnetically actuated linear position sensor
SKU: LT12E-Q21-LU4X3-H1141
Magnetostrictive · 304.8 mm [12.00 in] · Analog output · Connector, M12 × 1
$1,123.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Magnetically actuated linear position sensor
- EZ-Track Linear Displacement Transducer
The Turck Magnetically actuated linear position sensor # LT12E-Q21-LU4X3-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 9030333800 |
| Country of origin | US |
| Weight | 1000 g |
| Design | Profile |
| Measuring principle | Magnetostrictive |
| Measuring range | 304.8 mm [12.00 in] |
| Output function | Analog output |
| Voltage output | 0…5 V |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, AL |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67 |
| Approvals | CE, FM C1D2 |
