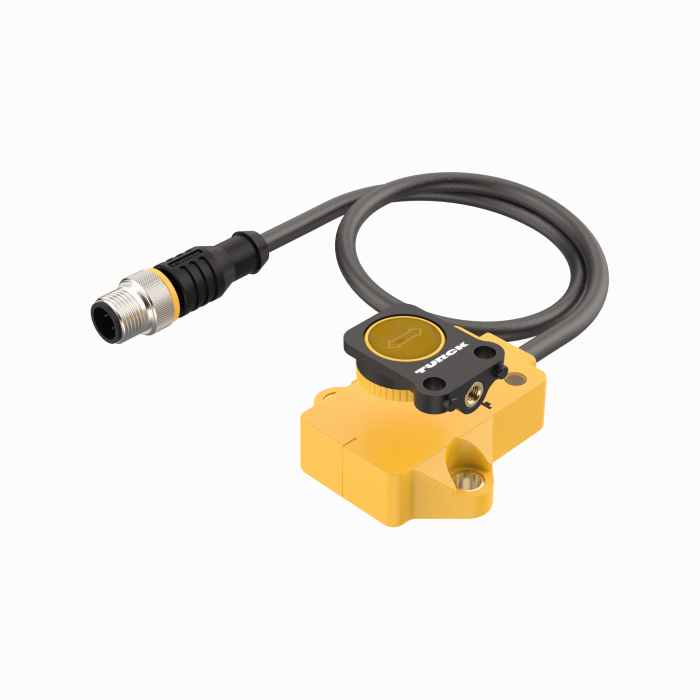

Inductive Linear Position Sensor
SKU: LI25P1-QR14-LIU5X2-0.3-RS4
Inductive · 25 mm [0.98 in] · Analog output · Cable with connector, M12 × 1
$379.40
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Linear Position Sensor
- Rectangular, plastic
- Many mounting possibilities
- P1-Li-QR14/Q17L included in delivery
- LED indicates measuring range
- Immune to electromagnetic interference
- Extremely short blind zones
- Resolution, 12-bit
- 15…30 VDC
- Analog output
- 0…10 V and 4…20 mA
- Cable with male end M12 x 1
The Turck Inductive Linear Position Sensor LI25P1-QR14-LIU5X2-0.3-RS4 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101260045 |
| eCl@ss-Code (V5.1.4) | 27270702 -/- Inductive linear position sensor |
| Customs tariff number | 7616995190 |
| Country of origin | CN |
| Weight | 74 g |
| Design | Profile |
| Measuring principle | Inductive |
| Measuring range | 25 mm [0.98 in] |
| Operating voltage | 15…30 VDC |
| Output function | Analog output |
| Voltage output | 0…10 V |
| Current output | 4…20 mA |
| Electrical connection | Cable with connector, M12 × 1 |
| Cable length (L) | 0.30 m |
| Housing material | Plastic, PBT-GF30-V0 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP68/IP69K |
