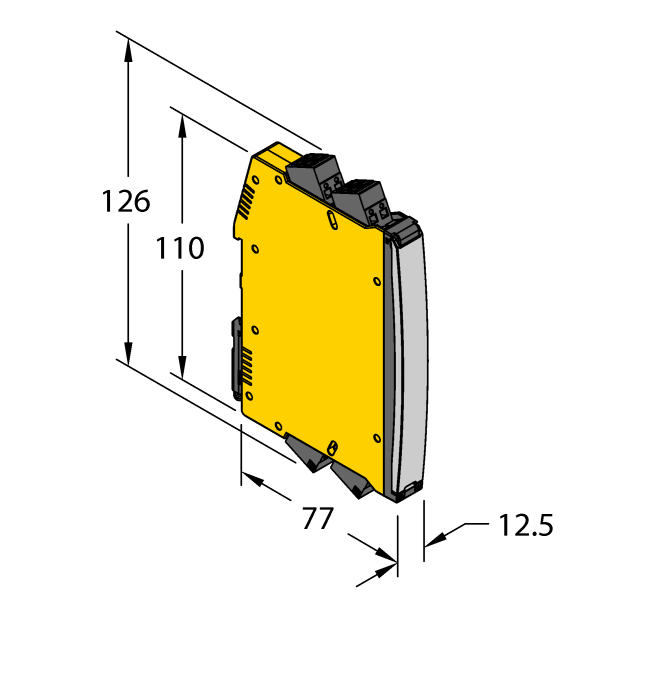

Isolating switching amplifier - 1-channel
SKU: IMXK12-DI01-1S-1T-0/24VDC/CC
Isolating switching amplifier · Digital input · 1 · 24 VDC · ATEX
$176.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Isolating switching amplifier — 1-channel
- Transistor output (≤10 kHz)
- Output mode adjustable (open-circuit/closed current mode)
- Input circuit monitored for wire break/short circuit (ON/OFF switchable)
- Complete galvanic isolation
- Input reverse-polarity protected
- Removable cage clamp terminals
- ATEX, IECEx, cUL
- Installation in zone 2
- SIL 2
The Turck Isolating switching amplifier - 1-channel # IMXK12-DI01-1S-1T-0/24VDC/CC is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101441512 |
| eCl@ss-Code (V5.1.4) | 27210121 -/- Isolating switching amplifier |
| Customs tariff number | 85365019000 |
| Country of origin | DE |
| Weight | 114 g |
| Signal type | Digital input |
| Device type | Isolating switching amplifier |
| Ex version | yes |
| Approvals | ATEX |
| Functional safety (SIL/PL) | SIL2 |
| Nominal voltage | 24 VDC |
| Number of channels | 1 |
| Digital output | Transistor output |
| Electrical connection | Removable spring-type terminals, 2-pin |
| Protection class | IP20 |
| Product series | IMXK12 |
