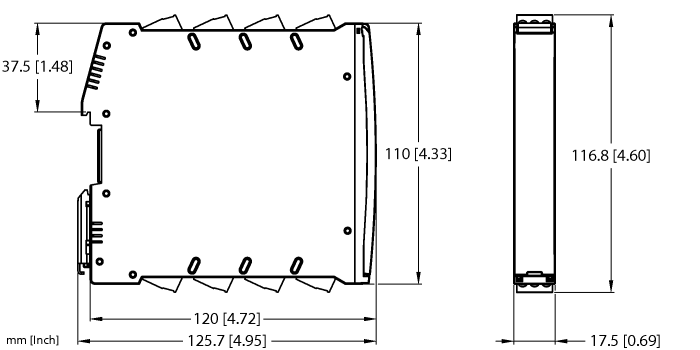

Isolating switching amplifier - 4-channel
SKU: IMX18-DI03-4S-5R-SPR/24VDC
Isolating switching amplifier · Digital input · 4 · Power bridge 24 VDC · ATEX
$307.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Isolating switching amplifier — 4-channel
- 4-channel
- 5 relay outputs
- Separate relay output for collective fault signals (NO)
- Configuration via rotary and DIP switches
- 4-channel operation or signal multiplexing (switchable)
- Adjustable output mode (NO/NC)
- Input circuits monitored for wire break/short circuit (can be switched ON/OFF)
- Complete galvanic isolation
- Input reverse-polarity protected
- Removable screw terminals
- Power-Bridge (connector incl. in delivery)
- ATEX, IECEx
- Use in Zone 2
- SIL 2
The Turck Isolating switching amplifier - 4-channel # IMX18-DI03-4S-5R-SPR/24VDC is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101541199 |
| eCl@ss-Code (V5.1.4) | 27210121 -/- Isolating switching amplifier |
| Customs tariff number | 85437090990 |
| Country of origin | DE |
| Weight | 176 g |
| Signal type | Digital input |
| Device type | Isolating switching amplifier |
| Ex version | yes |
| Approvals | ATEX |
| Functional safety (SIL/PL) | SIL2 |
| Nominal voltage | Power bridge 24 VDC |
| Number of channels | 4 |
| Digital output | Relay output |
| Connection variant | Power bridge with collective fault signal |
| Electrical connection | Removable screw terminals, 3-pin |
| Protection class | IP20 |
| Product series | IM18 |
