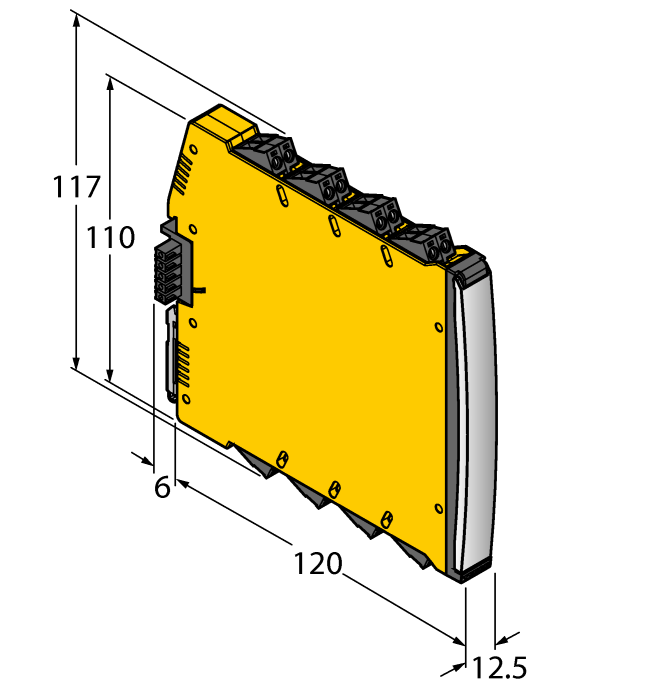

Temperature measuring amplifier - 2-channel
SKU: IMX12-TI01-2RTDR-2I-CPR/24VDC
Temperature measuring amplifier · Temperature input · 2 · Power bridge 24 VDC · ATEX, IECEx, INMETRO, TR CU, NEPSI
$594.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Temperature measuring amplifier — 2-channel
- Input circuits monitored for wire-break and short-circuit
- Parameterized via PC
- Complete galvanic isolation
- Input reverse-polarity protected
- Removable screw terminals
- Power bridge (connector incl. in delivery)
- ATEX, IECEx, cFM, cUL, NEPSI, INMETRO, Kosha
- Use in Zone 2
- SIL 2
The Turck Temperature measuring amplifier - 2-channel # IMX12-TI01-2RTDR-2I-CPR/24VDC is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101311389 |
| eCl@ss-Code (V5.1.4) | 27200206 -/- Transducer (temperature) |
| Customs tariff number | 8536698000 |
| Country of origin | CN |
| Weight | 170 g |
| Signal type | Temperature input |
| Device type | Temperature measuring amplifier |
| Ex version | yes |
| Approvals | ATEX, IECEx, INMETRO, TR CU, NEPSI |
| Functional safety (SIL/PL) | SIL2 |
| Nominal voltage | Power bridge 24 VDC |
| Number of channels | 2 |
| Connection variant | Power bridge with collective fault signal |
| Electrical connection | Removable screw terminals, 2-pin |
| Protection class | IP20 |
| Product series | IM(X)12 |
